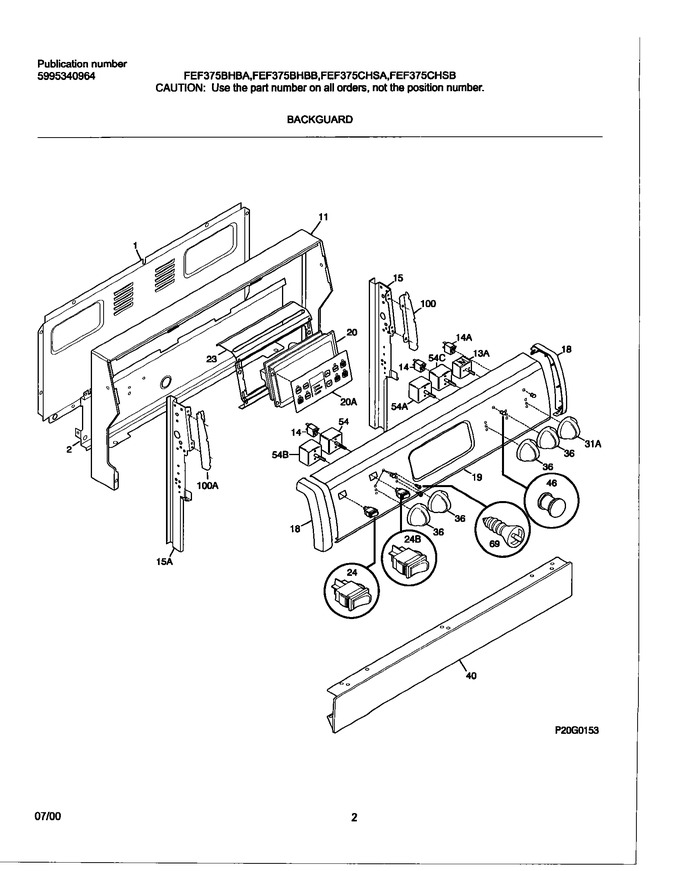

03 - Backguard


05 - Body


09 - Top / Drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061851		Trim-wrapper,textured ,black		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	5303935174		End Cap,black ,rh & Lh		Appelez-nous	-
19	316123613		Panel-bg E Frig Tfs Br Alum		Appelez-nous	-
20	316101503		Overlay-clock		Appelez-nous	-
23	316131501		Bracket-timer		Appelez-nous	-
36	316025108		Knob-control, Infinite Sw, Black		Appelez-nous	-
40	316064009		Panel-manifold,black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
100	316128300		Shield-backguard,rh		Appelez-nous	-
100A	316128301		Shield-backguard,lh		Appelez-nous	-
13A	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14A	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15A	316023109		Support,backguard ,lh		Appelez-nous	-
31A	316025108		Knob-control, Infinite Sw, Black		Appelez-nous	-
F20	316101001		Clock/timer, Electronic				$ 419.79
F24	5304527841		Switch-rocker, Black   (Replaces: 316118100)			Immediately	$ 11.38
F24B	316083100		Switch-rocker,dual Element ,black   (Replaces: 316086903)				$ 89.31
F54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
F54B	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
NI	316112500		Template, Anti-tip Bracket				$ 3.55
NI	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
