01 - Control Panel

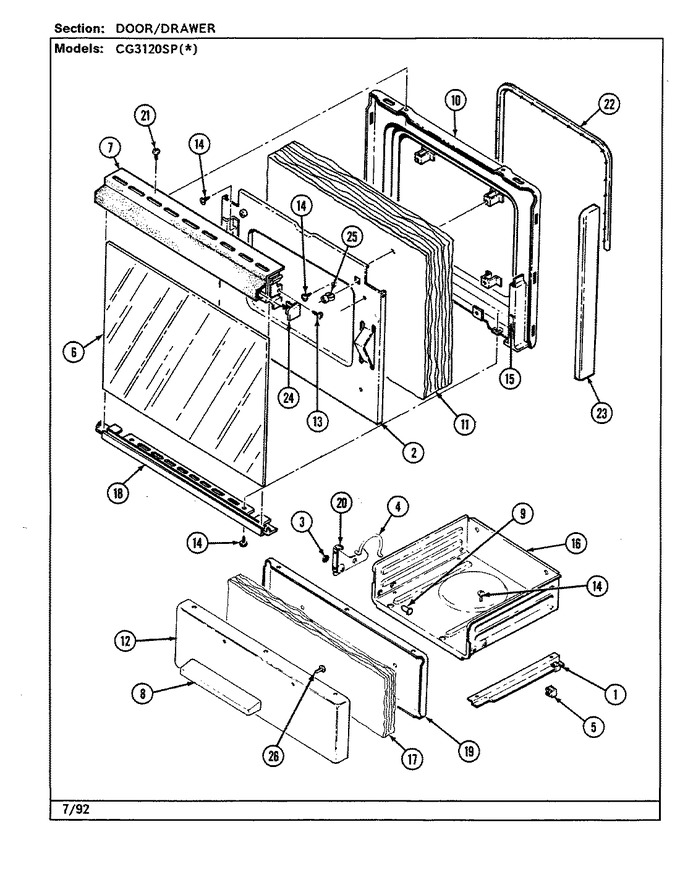

02 - Door/drawer (cg3110ppx)
03 - Door/drawer (cg3120spx)
04 - Gas Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 1 |
|
Immediately | $ 12.62 | |||
| 1 | 3404F023-51 | Track, Drawer (rt) | 1 |
|
- | ||||
| 1 | 3404F022-51 | Track, Drawer (lt) | 1 |
|
- | ||||
| 2 | 3601F218-45 | Baffle, Door | 1 |
|
- | ||||
| 3 | 7103P022-60 | Nut, Grip | 1 |
|
- | ||||
| 4 | 7803P065-60 | Spring, Hinge (rt) | 1 |
|
- | ||||
| 4 | 7803P064-60 | Spring, Hinge (lt) | 1 |
|
- | ||||
| 5 | 8016P011-60 | Glide, Drawer | 1 |
|
- | ||||
| 5 | 8016P012-60 | Glide, Drawer Rear | 1 |
|
- | ||||
| 6 | 7902P325-60 | Glass, Door (outer-blk) | 1 |
|
- | ||||
| 7 | 7701P103-60 | Handle, Door (blk) | 1 |
|
- | ||||
| 8 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 9 | 7113P012-60 | Pin, Broiler Hinge | 1 |
|
- | ||||
| 10 | 2402W187-19 | Lining, Door | 1 |
|
- | ||||
| 11 | 4804F011-60 | Insulation, Door | 1 |
|
- | ||||
| 12 | 2403F028-70 | Panel, Drawer (blk) | 1 |
|
- | ||||
| 12 | 2403F028-71 | Panel, Drawer (wht) | 1 |
|
- | ||||
| 12 | 2403F028-74 | Panel, Drawer (alm) | 1 |
|
- | ||||
| 13 | 7101P291-60 | Screw | 1 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 1 |
|
Immediately | $ 12.62 | |||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 16 | 3407F012-19 | Drawer, Broiler | 1 |
|
- | ||||
| 17 | 4804F025-60 | Insulation | 1 |
|
- | ||||
| 18 | 7744P078-60 | Trim, Door (btm-blk) | 1 |
|
- | ||||
| 19 | 2404F035-19 | Lining, Broiler Drawer | 1 |
|
- | ||||
| 20 | 3418F079-51 | Hinge, Drawer (lt) | 1 |
|
- | ||||
| 20 | 3418F080-51 | Hinge, Drawer (rt) | 1 |
|
- | ||||
| 21 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 22 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 1 |
|
Immediately | $ 56.83 | |||
| 23 | 7744P055-60 | End Cap, Oven Door (blk) | 1 |
|
- | ||||
| 24 | 7744P075-60 | End Cap (rt) | 1 |
|
- | ||||
| 24 | 7744P076-60 | End Cap (lt) | 1 |
|
- | ||||
| 25 | 8010P085-60 | Spacer, Rubber | 1 |
|
- | ||||
| 25 | 8010P075-60 | Spacer | 1 |
|
- | ||||
| 26 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 1 |
|
$ 5.82 |
