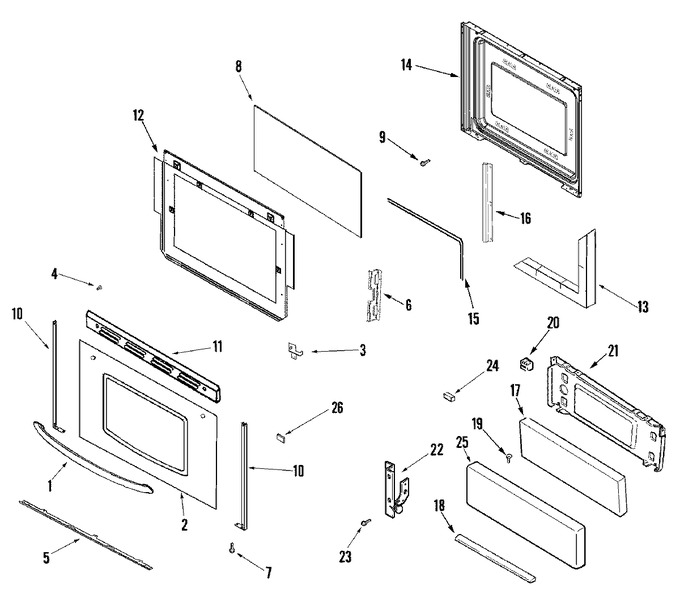

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010338		Handle, Door (blk)	14			$ 84.76
2	74010362		Glass, Door (blk)	14	Appelez-nous	-
3	3801F831-45		Bracket, Door Handle (rt)   (Replaces: 74009698)	14			$ 19.17
3	3801F832-45		Bracket, Door Handle (lt)   (Replaces: 74009699)	14			$ 19.12
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	14			$ 7.29
5	74009686		Support, Glass (blk)	14	Appelez-nous	-
6	74003650		Retainer, Glass	14	Appelez-nous	-
7	WP98008545		Screw (blk)   (Replaces: 74009537)	14			$ 15.94
8	74003645		Glass, Inner	14		Immediately	$ 162.53
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
10	WP74009014		Tape, Dbl Sided (wht)   (Replaces: 74009014)	14			$ 6.91
10	74009693		Trim, Door (blk-lt)	14	Appelez-nous	-
10	74009692		Trim, Door (blk-rt)	14	Appelez-nous	-
11	74010239		Trim, Door Top (blk)	14	Appelez-nous	-
12	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	14			$ 244.22
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
13	74003647		Insulation, Oven Door	14	Appelez-nous	-
14	74011460		Lining, Oven Door	14	Appelez-nous	-
15	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	14		Immediately	$ 56.83
16	74011458		Bracket, Inner Glass	14	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
17	74001814		Insulation, Broiler Drawer	14	Appelez-nous	-
18	74010423		Handle, Door (blk)	14	Appelez-nous	-
19	W11233072		Screw, (no.8x1/2``pph)   (Replaces: 74009268)	14		Immediately	$ 12.62
20	74001663		Glide	14	Appelez-nous	-
21	74007553		Lining, Drawer	14	Appelez-nous	-
22	74007560		Hinge, Drawer	14			$ 61.30
23	WPW10068250		Screw   (Replaces: 74009897)	14			$ 3.66
24	WP74005546		Spacer, Rubber   (Replaces: 74005546)	14			$ 9.48
25	74002551		Panel, Drawer (blk)	14	Appelez-nous	-
26	74010267		Spacer, Rubber (blk-square)	14			$ 8.34
