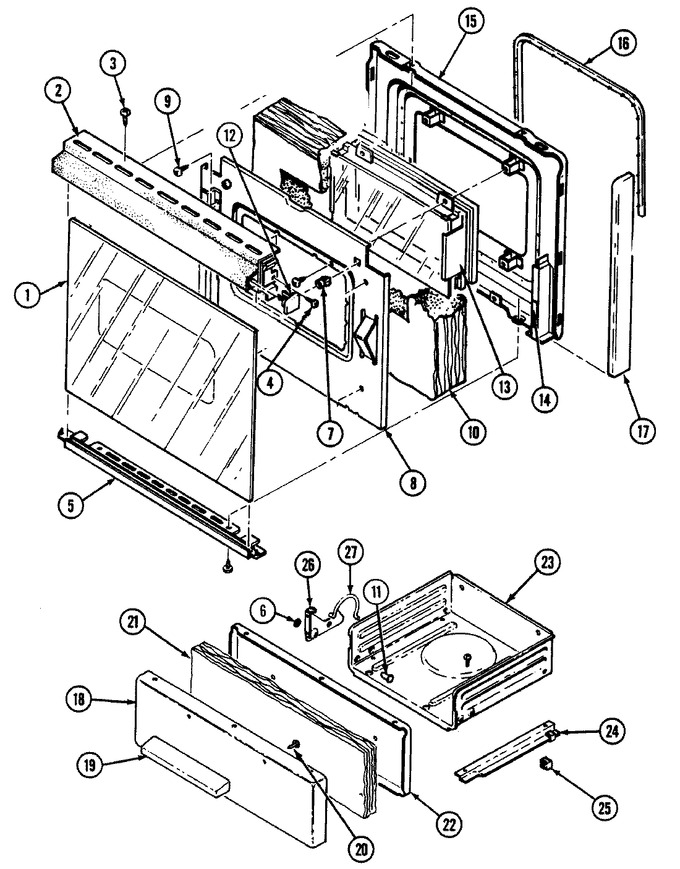

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)	10	Appelez-nous	-
2	7701P103-60		Handle, Door (blk)	10	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
4	7101P329-60		Screw	10	Appelez-nous	-
5	7744P105-60		Trim, Bottom (blk)----na	10	Appelez-nous	-
6	7103P022-60		Nut, Grip	10	Appelez-nous	-
7	7103P045-60		Nut, Nylon	10	Appelez-nous	-
8	3601F236-47		Baffle, Door	10	Appelez-nous	-
8	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
10	7002P156-60		Insulation, Door	10	Appelez-nous	-
11	7113P012-60		Pin, Broiler Hinge	10	Appelez-nous	-
12	7744P076-60		End Cap (lt)	10	Appelez-nous	-
12	7744P075-60		End Cap (rt)	10	Appelez-nous	-
13	7907P016-60		Window Asy.	10	Appelez-nous	-
14	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
15	2402W203-19		Lining, Door	10	Appelez-nous	-
16	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)	10		Immediately	$ 56.83
17	7744P055-60		End Cap, Oven Door (blk)	10	Appelez-nous	-
18	2403F028-74		Panel, Drawer (alm)	10	Appelez-nous	-
19	7701P012-60		Handle, Drawer (chr)	10	Appelez-nous	-
20	74002481		Screw, Handle   (Replaces: 7101P283-60)	10			$ 5.82
21	4804F025-60		Insulation	10	Appelez-nous	-
22	2404F035-19		Lining, Broiler Drawer	10	Appelez-nous	-
23	3407F012-19		Drawer, Broiler	10	Appelez-nous	-
24	3404F023-51		Track, Drawer (rt)	10	Appelez-nous	-
24	3404F022-51		Track, Drawer (lt)	10	Appelez-nous	-
25	8016P015-60		Glide	10			$ 5.65
25	8016P011-60		Glide, Drawer	10	Appelez-nous	-
26	3418F080-51		Hinge, Drawer (rt)	10	Appelez-nous	-
26	3418F079-51		Hinge, Drawer (lt)	10	Appelez-nous	-
27	7803P065-60		Spring, Hinge (rt)	10	Appelez-nous	-
27	7803P064-60		Spring, Hinge (lt)	10	Appelez-nous	-
