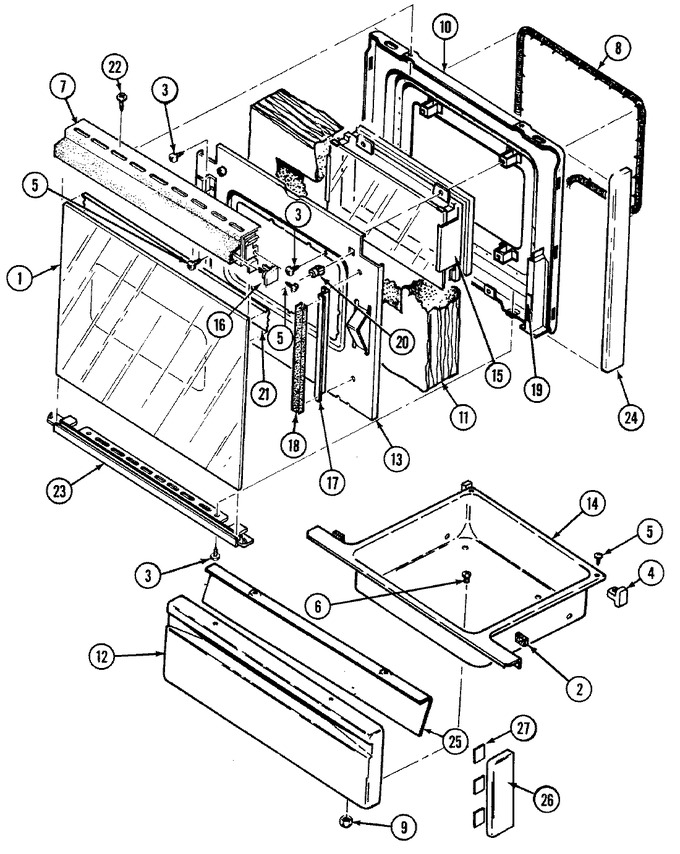

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)	16	Appelez-nous	-
2	WP854334		Spacer, Rubber   (Replaces: 8010P086-60)	16			$ 11.95
3	W11233072		Screw   (Replaces: 7101P290-60)	16		Immediately	$ 12.62
4	8004P026-60		Support, Drawer (rear)	16			$ 9.29
5	7101P291-60		Screw	16	Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P115-60)	16			$ 4.29
7	7701P103-60		Handle, Door (blk)	16	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	16		Immediately	$ 77.61
9	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	16			$ 4.00
10	2402W202-19		Lining, Door	16	Appelez-nous	-
11	7002P155-60		Insulation, Door	16	Appelez-nous	-
12	2416F038-64		Panel, Drawer (alm)	16	Appelez-nous	-
13	3601F236-47		Baffle, Door	16	Appelez-nous	-
13	8010P085-60		Spacer, Rubber	16	Appelez-nous	-
14	3405F018-80		Drawer, Storage	16	Appelez-nous	-
15	3805F002-34		Clamp, Window Assy.	16	Appelez-nous	-
15	7907P021-60		Window Asy.	16	Appelez-nous	-
16	7744P075-60		End Cap (rt)	16	Appelez-nous	-
16	7744P076-60		End Cap (lt)	16	Appelez-nous	-
17	3818F052-51		Channel, Air	16	Appelez-nous	-
18	7208P002-60		Seal	16	Appelez-nous	-
19	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	16			$ 11.95
20	7103P045-60		Nut, Nylon	16	Appelez-nous	-
21	8270P078-60		Tape, Foil (29 1/2``)	16	Appelez-nous	-
22	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	16			$ 15.94
23	7744P105-60		Trim, Bottom (blk)----na	16	Appelez-nous	-
24	7744P055-60		End Cap, Oven Door (blk)	16	Appelez-nous	-
25	2404F030-51		Lining, Drawer Panel	16	Appelez-nous	-
