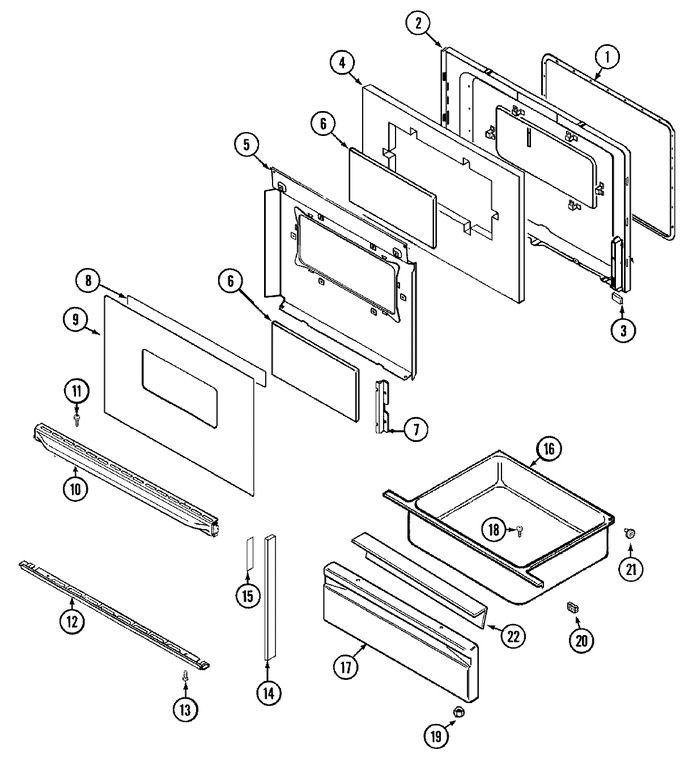

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
2	74004972		Lining, Oven Door	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	74001842		Insulation, Door	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74001843		Baffle, Door	10	Appelez-nous	-
6	74003320		Glass, Inner	10			$ 86.35
7	74001844		Retainer, Glass	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
9	74005041		Glass, Door (outer-bsq)	10	Appelez-nous	-
10	74005042		Handle, Door (bsq)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26
12	74005043		Trim, Door (lwr-bsq)	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74005044		Trim, Door (side-bsq)	10	Appelez-nous	-
15	74004075		Tape	10	Appelez-nous	-
16	71003042		Drawer, Storage	10	Appelez-nous	-
17	74004966		Panel, Drawer (bsq)	10	Appelez-nous	-
18	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
19	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
21	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
21	74004079		Shaft, Roller	10	Appelez-nous	-
21	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
22	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
