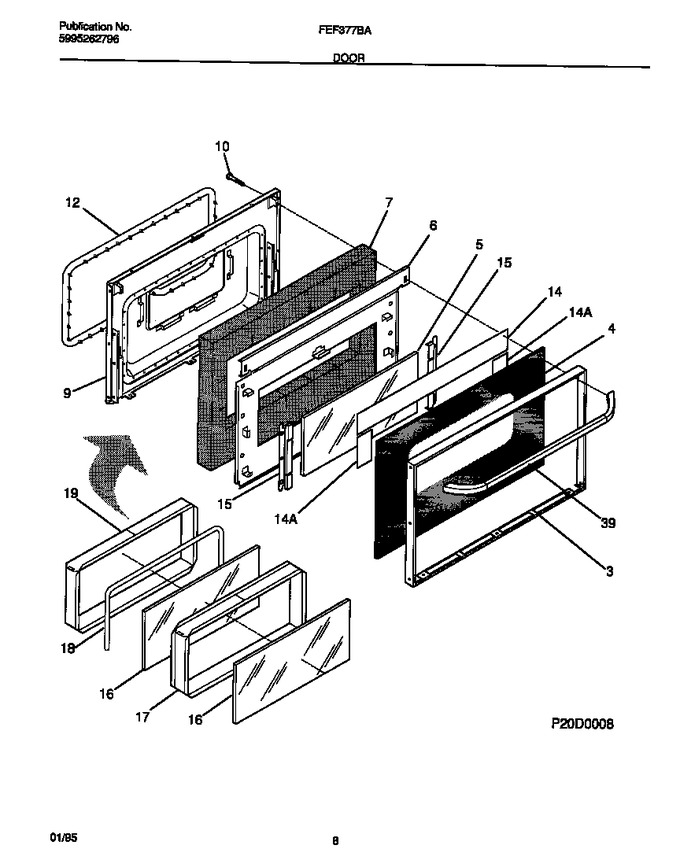

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303209518		Trim-oven Door (black)		Appelez-nous	-
4	316019706		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303211084		Shield-insulation		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	5303209515		Liner-oven Door		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
14	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
*37654	316065300		Plate Warning/caution		Appelez-nous	-
*37655	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*37656	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*37657	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
18A	5303211085		Seal-rope, 0.25 Dia				$ 44.00
18B	5303288567		Screw, 8-18 X 3/8, (4) (not Illustrated)		Appelez-nous	-
