01 - Cover
02 - Backguard

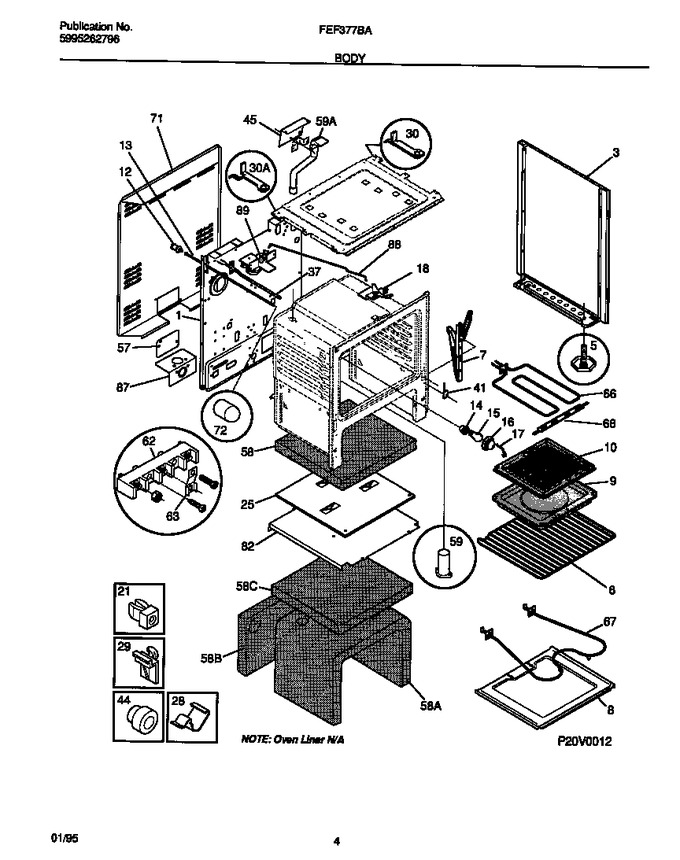

03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029401 | Back-main, Autolatch |
|
- | |||||
| 3 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 3 | 5303269519 | Panel, Bodyside, White, Lh (not-illustrated) |
|
- | |||||
| 3 | 3200834 | Shield, Heat, Body Side (not Illustrated) |
|
- | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007002 | Hinge-oven Door, (2) |
|
$ 244.07 | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 12 | 316027701 | Switch-oven Light, Door Frame |
|
- | |||||
| 13 | 316026800 | Rod-light Switch/door |
|
$ 36.86 | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204585 | Retainer-glass |
|
- | |||||
| 18 | 316036300 | Latch-door |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 25 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 28 | 316045000 | Clip-wire |
|
- | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303283574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 30 | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 37 | 5304497424 | Probe-oven Temp (Replaces: 3204593) |
|
Immediately | $ 38.32 | ||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 45 | 316066101 | Shield-wire, S/t Vent |
|
- | |||||
| 57 | 3203405 | Cover-access |
|
- | |||||
| 58 | 3200833 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 58 | 316054200 | Insulation, Oven Back |
|
- | |||||
| 58 | 3131304 | Insulation, Oven Top |
|
- | |||||
| 59 | 316040100 | Bracket-mounting, Vent Tube (not Illustrated) |
|
- | |||||
| 59 | 5303271905 | Tube, Oven Vent, Lower |
|
- | |||||
| 59 | 316023601 | Tube-oven Vent, Upper |
|
- | |||||
| 62 | 5303935061 | Terminal Block |
|
- | |||||
| 63 | 5303212739 | Plate-ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 68 | 3051373 | Support-element |
|
- | |||||
| 71 | 316015803 | Shield, Rear Wall, Rear Wall |
|
- | |||||
| 72 | 5303285692 | Cover-light/switch Rod |
|
- | |||||
| 82 | 3200825 | Shield, Oven Bottom |
|
- | |||||
| 87 | 5303206618 | Bracket-cable Mtg |
|
- | |||||
| 88 | 316026400 | Rod-latch, Auto |
|
$ 21.79 | |||||
| 89 | 316028101 | Motor-latch/lock |
|
- | |||||
| *37642 | N/A | Wiring Harnesses Are Not Available For This Model |
|
- | |||||
| *37643 | 3200846 | Fastener-edge Mtg |
|
- | |||||
| *37644 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *37645 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *37647 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| *37648 | 316001140 | Harness-wiring, Main |
|
- | |||||
| *37649 | 316003001 | Instruction For Installation |
|
- | |||||
| 5A | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5B | 3934056 | Anti-tip Kit (not Illustrated) |
|
- | |||||
| 5C | 5303288460 | Nut, T,type, Leveling Screw (not Illustrated) |
|
$ 27.14 |
