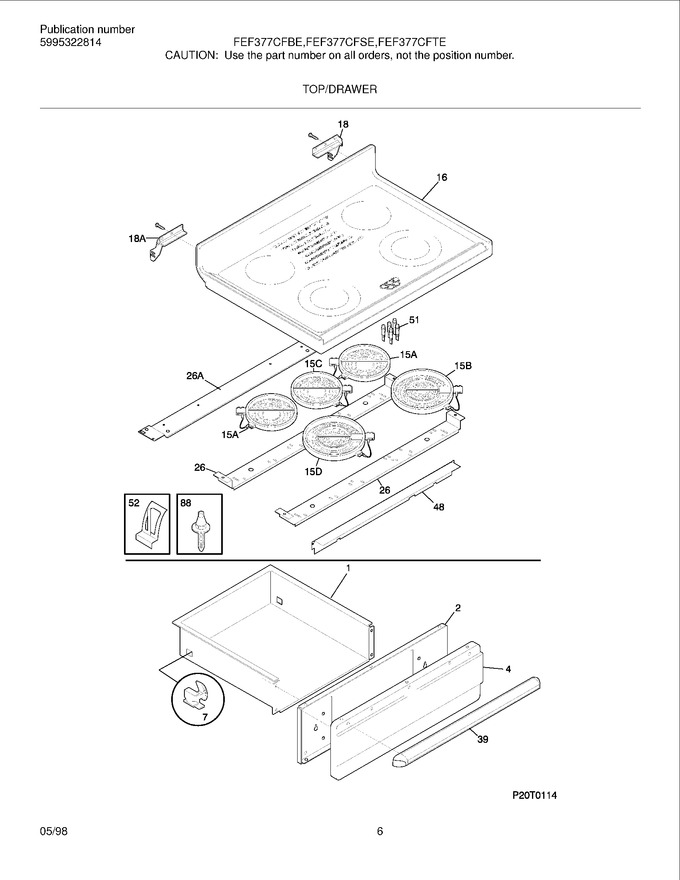

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056203		Panel-drawer,black		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316098122		Main Top, Glass, Black		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
39	316026105		Handle-drawer,black				$ 82.79
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	316105200		Light-indicator, Hot Surface, Assy, (1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099201		Bracket-support, Chassis		Appelez-nous	-
F15A	318198817		Element-surface, Radiant, Small/6 Inch ,1200w,limit Sw I   (Replaces: 316010203)			Immediately	$ 192.78
F15B	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw Incl   (Replaces: 316049703)				$ 284.39
F15C	316098201		Element-warmer,120v/100w		Appelez-nous	-
F15D	316049702		Element-surface, Radiant, 9``, Dual, 2100w/700w, Limit Sw		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	3131903		Bumper,rubber				$ 55.36
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
NI	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001760		Harness-surface Elements		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
