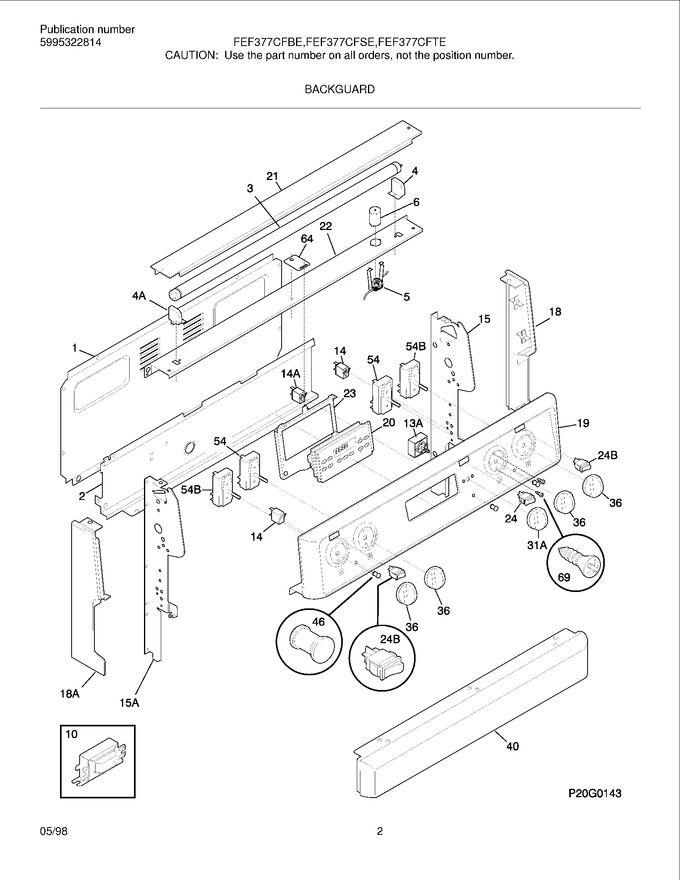

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316049104		Support-backguard, Rh		Appelez-nous	-
18	316026904		End Cap, White, Rh				$ 127.68
19	316024541		Panel-control, Metal, White		Appelez-nous	-
20	316089306		Overlay-clock				$ 106.63
21	316024902		Trim-canopy/shield, White		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060002		Bracket-clock Mtg		Appelez-nous	-
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
64	316062400		Retainer Plate		Appelez-nous	-
13A	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14A	316022500		Light/lamp, Indicator , Warmer Zone ,125 V			Immediately	$ 53.57
15A	316049105		Support-backguard, Lh		Appelez-nous	-
18A	316026905		End Cap, White, Lh				$ 107.15
31A	316095601		Knob-warmer, White				$ 23.78
4A	3051223		Receptacle-lamp, Lh		Appelez-nous	-
F10	316099800		Ballast-lamp		Appelez-nous	-
F24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
F24B	316083100		Switch-rocker, Dual Element, White   (Replaces: 316086901)				$ 89.31
F5	316053200		Receptacle, Starter		Appelez-nous	-
F54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54B	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
F6	3206218		Starter-lamp				$ 54.08
NI	316000284		Owner`s Manual		Appelez-nous	-
NI	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
NI	316112500		Template, Anti-tip Bracket				$ 3.55
NI	316085600		Insulator-shield Thermostt		Appelez-nous	-
NI	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
