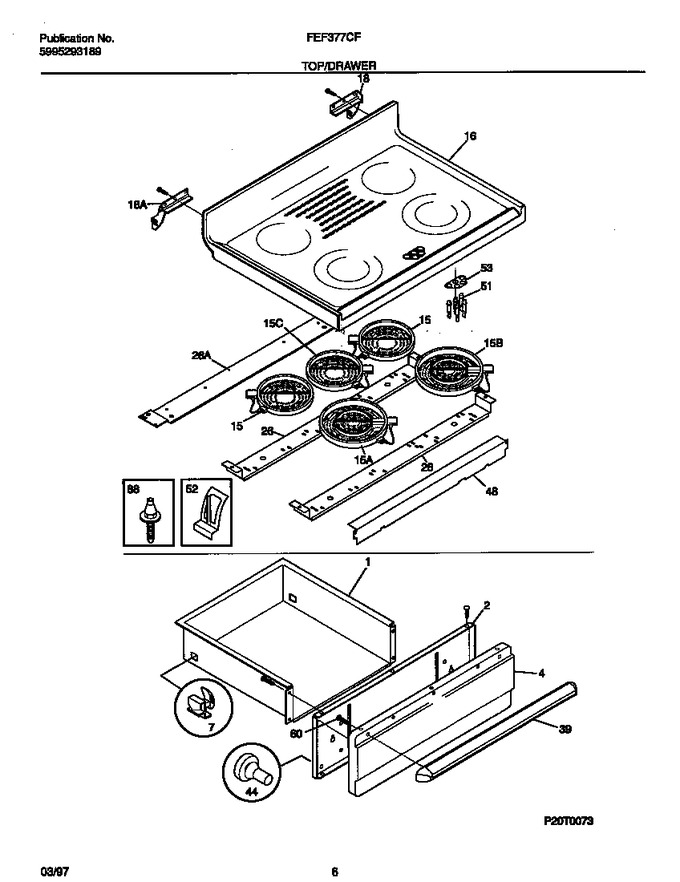

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw In   (Replaces: 316049703)				$ 284.39
15	316049702		Element-surface, Dual, 9``, 2100w/700w, Limit Sw. Incl.		Appelez-nous	-
15	316098200		Element-warmer, 120v/100w		Appelez-nous	-
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, (2), Limi   (Replaces: 316010203)			Immediately	$ 192.78
16	316098121		Main Top, Glass, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316026104		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	316098300		Light-indicator, Hot Surface, Assy, (1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
60	316089500		Screw, Drawer Handle 10-16 X .486, Safety Valve, (2)				$ 13.46
88	316099500		Pin,guide ,(2)				$ 6.53
*26526	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*26527	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*26528	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*26529	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*26530	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*26531	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*26532	5309951550		Cleaner-cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
