Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74010338 Handle, Door (blk) 12 Special Order $ 84.76

2 74011478 Panel, Door (stl) 12 Appelez-nous -
2 74010233 Insulation, Foil 12 Appelez-nous -
3 74010042 Glass, Oven Door (stl) 12 Special Order $ 75.26

4 WP74006515 Screw W/washer (handle Mtg)   (Replaces: 74006635) 12 Special Order $ 7.29

5 WP74009029 Gasket, Door Window   (Replaces: 74009029) 12 In-Stock Immediately $ 145.22

6 74010041 Retainer, Door Glass 12 Appelez-nous -
7 74010231 Glass, Door (inner/coated) 12 Appelez-nous -
8 74003645 Glass, Inner 12 In-Stock Immediately $ 162.53

9 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 12 In-Stock Immediately $ 12.62

10 74011458 Bracket, Inner Glass 12 Appelez-nous -
11 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) 12 Special Order $ 4.00

12 3601F373-51 Baffle, Oven Door   (Replaces: 74011457) 12 Special Order $ 244.22

13 74010040 Shield, Door (stl) 12 Appelez-nous -
14 74011456 Lining, Door 12 Appelez-nous -
15 WPW10162384 Gasket, Door   (Replaces: 7201P046-60) 12 In-Stock Immediately $ 77.61

16 WP74005546 Spacer, Rubber   (Replaces: 74005546) 12 Special Order $ 9.48

17 74003647 Insulation, Oven Door 12 Appelez-nous -
18 WP7101P072-60 Screw, Panel   (Replaces: 74004310) 12 Special Order $ 6.77

19 74008337 Drawer, Storage 12 Special Order $ 171.37

20 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) 12 Special Order $ 4.00

21 74009841 Handle, Drawer (stl) 12 Appelez-nous -
22 74009840 Panel, Drawer Gas (stl) 12 Appelez-nous -
23 74005231 Shaft, Storage Drawer Roller 12 Special Order $ 9.23

24 WP74004078 Roller, Drawer   (Replaces: 74004078) 12 In-Stock Immediately $ 10.70

25 WP488130 Nut   (Replaces: 7103P082-60) 12 Special Order $ 6.27

26 2404F030-51 Lining, Drawer Panel 12 Appelez-nous -
27 W11233072 Screw, (no.8x1/2``pph)   (Replaces: 74009268) 12 In-Stock Immediately $ 12.62

27 W11233072 Screw   (Replaces: 74009538) 12 In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

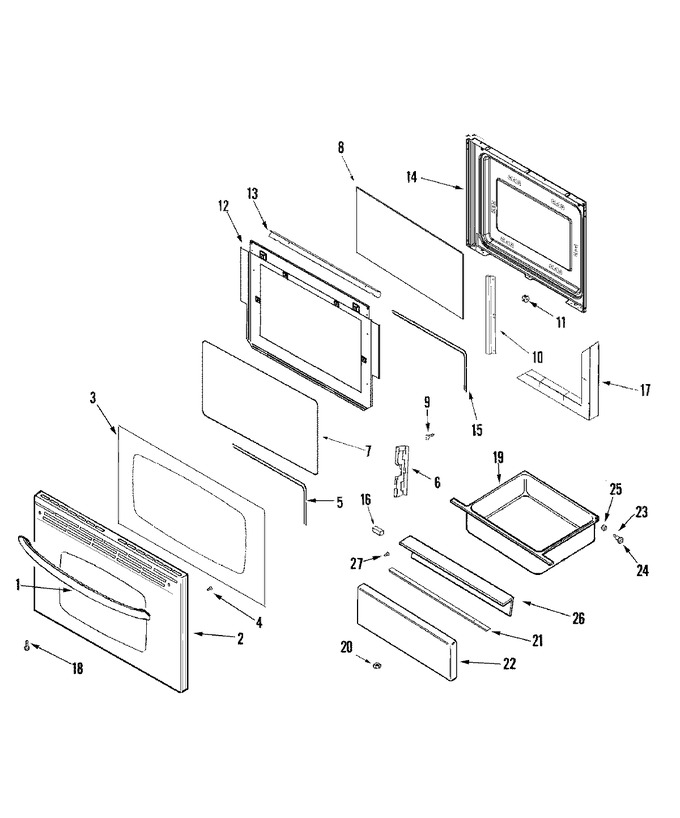

Diagram for CG34800BDS
