SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

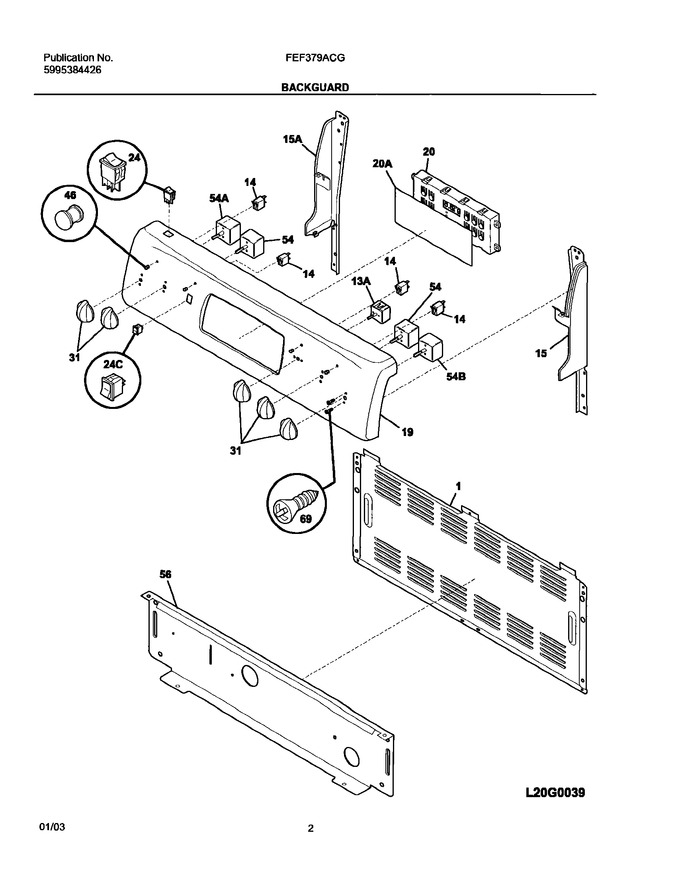

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316220216		Support,backguard ,black ,rh				$ 79.85
19	316232611		Panel,backguard ,black		Appelez-nous	-
23	316220900		Bracket,clock Mtg				$ 59.43
31	316223002		Knob,black			Immediately	$ 57.64
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234003		Shield,backguard ,black ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316220217		Support,backguard ,black ,lh				$ 61.32
20A	316220805		Overlay,clock ,black				$ 49.40
F13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F20	316207507		Clock/timer,electronic		Appelez-nous	-
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316246001)			Immediately	$ 11.38
F24C	316114002		Switch-speed Bake,black		Appelez-nous	-
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
F54B	316238201		Switch,infinite ,dual Element   (Replaces: 316238200)			Immediately	$ 89.00
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
