SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Gas Control
04 - Oven/base

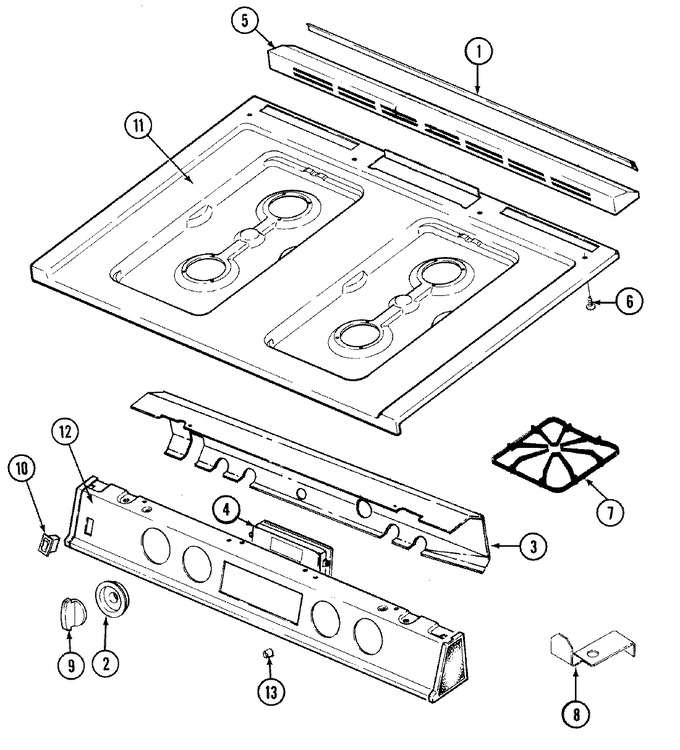

05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7201P061-60 | Gasket | 14 |
|
$ 4.83 | ||||
| 2 | W10856847 | Bezel, Knob (wht) (Replaces: 7740P059-60) | 14 |
|
$ 46.82 | ||||
| 3 | 74001717 | Cover, Manifold Pipe | 14 |
|
- | ||||
| 4 | 7601P277-60 | Clock (wht) | 14 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 14 |
|
$ 6.98 | ||||
| 4 | 3801F349-51 | Bracket, Clock | 14 |
|
- | ||||
| 5 | 4825D001-59 | Cover, Vent Trim | 14 |
|
- | ||||
| 5 | 3601F221-45 | Baffle, Vent Cover | 14 |
|
$ 28.30 | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 14 |
|
$ 6.98 | ||||
| 7 | 2003W027-26 | Grate (gry) | 14 |
|
- | ||||
| 8 | 3801F318-51 | Bracket, Top | 14 |
|
- | ||||
| 9 | WP74003769 | Knob, Valve (wht) (Replaces: 7733P083-60) | 14 |
|
$ 15.24 | ||||
| 10 | 7403P200-60 | Switch, Rocker (wht) | 14 |
|
- | ||||
| 11 | 2001W089-81 | Top, Main (wht) | 14 |
|
- | ||||
| 12 | 7101P348-60 | Screw (wht) | 14 |
|
- | ||||
| 12 | 74001218 | Panel, Manifold (wht) | 14 |
|
- | ||||
| 13 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P493-60) | 14 |
|
$ 12.13 | ||||
| NI | 74001575 | Harness, Control/relay | 14 |
|
- | ||||
| NI | 5170P184-60 | Harness, Relay | 14 |
|
- | ||||
| NI | 8113P066-60 | Manual, Use & Care | 14 |
|
- | ||||
| NI | 16002080 | Guide, Quick Ref - Crosley | 14 |
|
- |
