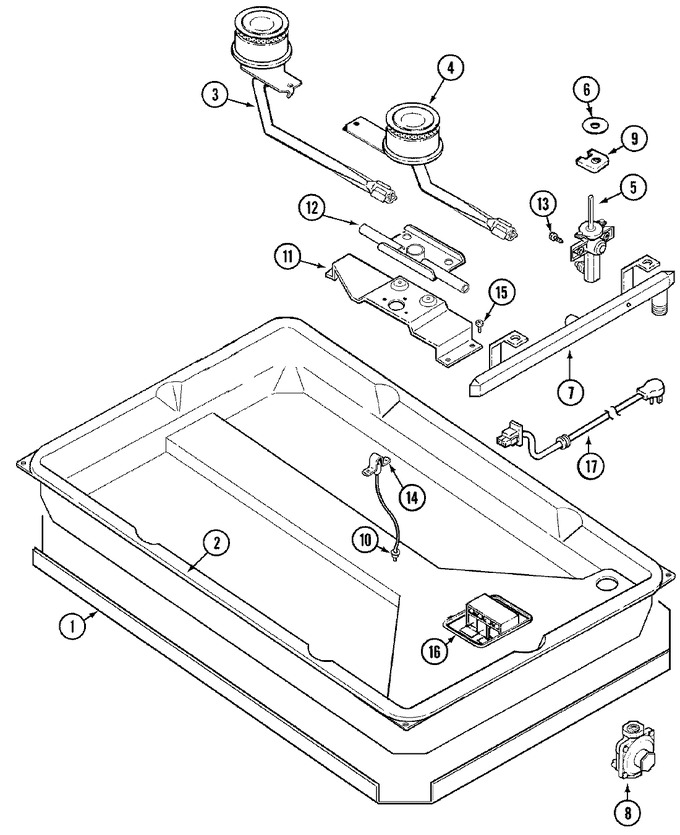

01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F185-51 | Baffle, Bottom | 01 |
|
- | ||||
| 2 | 4011F141-19 | Box, Burner | 01 |
|
- | ||||
| 2 | 4011F237-19 | Box, Burner | 11 |
|
- | ||||
| 3 | 7505P160-60 | Burner, Top Left | 01 |
|
- | ||||
| 3 | 7505P231-60 | Burner, Top (lt) | 11 |
|
- | ||||
| 4 | 7505P230-60 | Burner, Top (rt) | 11 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 4 | 7505P161-60 | Burner, Top Right | 01 |
|
- | ||||
| 5 | 7502P121-60 | Valve, Hi-med-lo | 01 |
|
- | ||||
| 5 | 74001251 | Valve, Burner | 11 |
|
- | ||||
| 6 | 7724P004-60 | Cover, Burner Valve | 01 |
|
- | ||||
| 7 | 7513P147-60 | Pipe, Manifold | 11 |
|
- | ||||
| 7 | 7513P060-60 | Pipe, Manifold | 01 |
|
- | ||||
| 8 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 8 | W11170853 | Regulator, Pressure (Replaces: 74001252) | 11 |
|
$ 283.08 | ||||
| 9 | WP7403P367-60 | Switch, Burner (Replaces: 7403P367-60) | 11 |
|
$ 132.10 | ||||
| 9 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 01 |
|
$ 118.82 | ||||
| 10 | 8007P003-60 | Bushing, Snap | 01 |
|
- | ||||
| 11 | 3807F101-51 | Support | 01 |
|
- | ||||
| 12 | 7506P016-60 | Tube, Flash | 01 |
|
- | ||||
| 13 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 13 | 7101P044-60 | Screw, Valve | 11 |
|
- | ||||
| 14 | 7432P010-60 | Igniter | 01 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 01 |
|
Immediately | $ 6.85 | |||
| 16 | 4005F109-80 | Cover, Transformer | 01 |
|
- | ||||
| 16 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 17 | 7402P013-60 | Cord, Power | 01 |
|
- |
