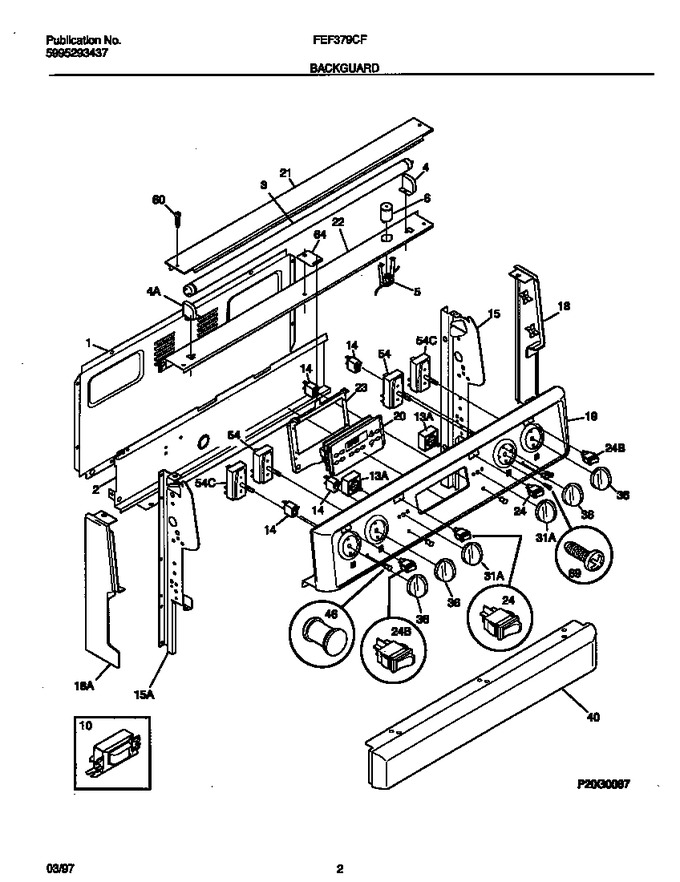

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	316099800		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, (2)   (Replaces: 316095500)			Immediately	$ 84.18
15	316049107		Support, Backguard, Lh		Appelez-nous	-
15	316049106		Support, Backguard, Rh		Appelez-nous	-
18	316026907		End Cap, Almond, Lh		Appelez-nous	-
18	316026906		End Cap, Almond, Rh		Appelez-nous	-
19	316024539		Panel-control, Almond		Appelez-nous	-
20	5303935119		Clock/timer, Eoc, Almond, With Overlay		Appelez-nous	-
20	316089308		Overlay-clock (not Illustrated)		Appelez-nous	-
21	316024903		Trim-canopy/shield, Almond		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060003		Bracket, Clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker		Appelez-nous	-
24	316086902		Switch-rocker, Dual Element, Almond		Appelez-nous	-
31	316095602		Knob-warmer, Almond, (2)		Appelez-nous	-
36	316025107		Knob-control, Infinite Sw, Almond, (4)		Appelez-nous	-
40	316025809		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (4)		Appelez-nous	-
54	5304528972		Switch, Dual Element, (2)   (Replaces: 316049800)				$ 47.78
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
64	316062400		Retainer, Plate, 64		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*45440	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*45441	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*45442	5303290188		Screw, 6 Ov Sdr, 8-18 X 1/2		Appelez-nous	-
14A	316022503		Light/lamp, Indicator, Yellow, 250 V, (2)			Immediately	$ 70.16
14B	316022500		Light/lamp, Indicator, 125 V, (2) (not Illustrated)			Immediately	$ 53.57
