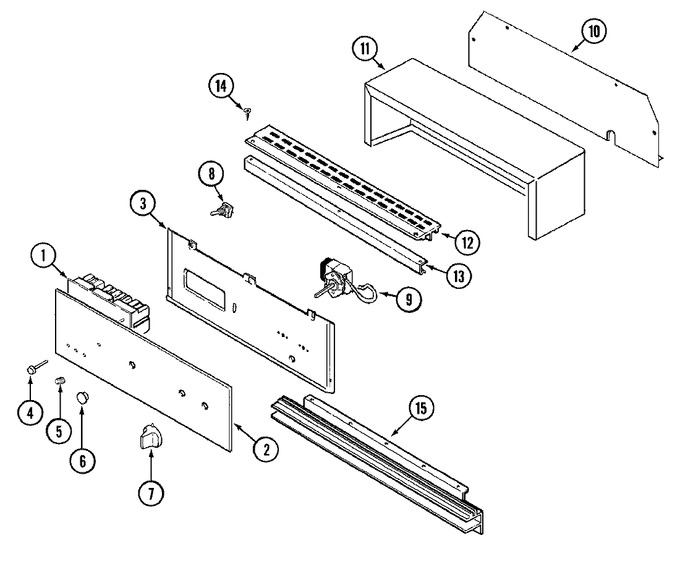

01 - Control Panel
02 - Door (upper & Lower)
03 - Gas Controls
04 - Oven/body
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P097-60 | Clock | 01 |
|
- | ||||
| 1 | 74001454 | Bracket, Clock | 01 |
|
- | ||||
| 2 | 7912P031-60 | Glass, Control Panel | 01 |
|
- | ||||
| 3 | 74001455 | Plate, Switch | 01 |
|
- | ||||
| 4 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 5 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 6 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 7 | 74001254 | Knob, Thermostat (chr) | 11 |
|
$ 12.47 | ||||
| 7 | 7711P085-60 | Knob | 01 |
|
- | ||||
| 8 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 9 | 7404P059-60 | Thermostat | 01 |
|
- | ||||
| 9 | 7404P098-60 | Thermostat | 11 |
|
$ 172.62 | ||||
| 10 | 4005F151-51 | Cover, Rear Wire | 01 |
|
- | ||||
| 11 | 4005F153-51 | Cover, Wire | 01 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 7706P199-60 | Extrusion, Top (blk) | 01 |
|
- | ||||
| 13 | 74002257 | Extrusion, Top (front/blk) | 01 |
|
- | ||||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 15 | 7756P072-60 | Extrusion Vent | 01 |
|
- | ||||
| NI | 8112P064-60 | Manual, Use & Care | 01 |
|
- | ||||
| NI | 16002080 | Guide, Quick Ref - Crosley | 01 |
|
- |
