SELECT A DIAGRAM

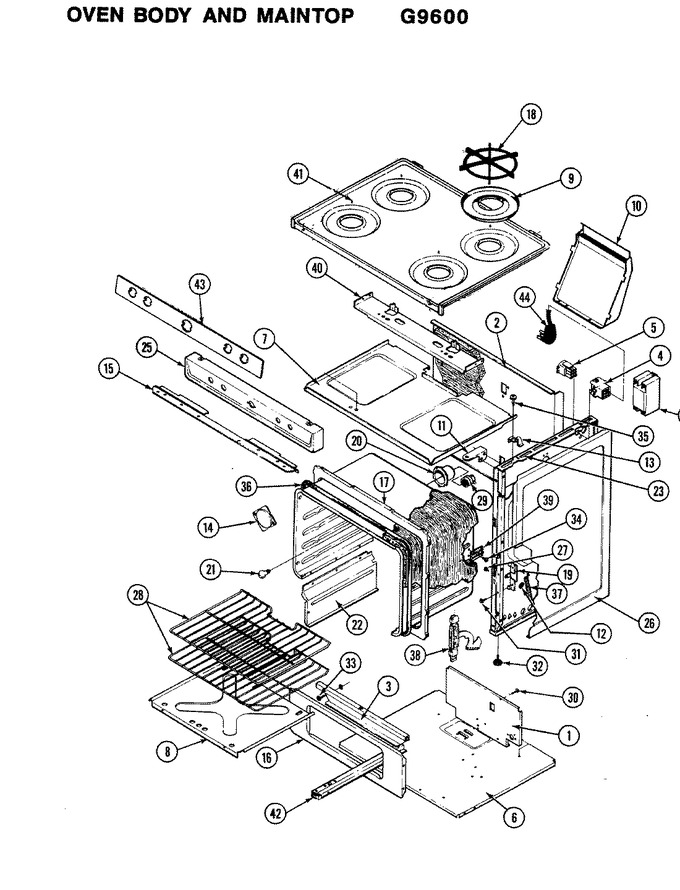

01 - Body
02 - Controls
03 - Door
04 - Drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F078-45 | Back, Broiler | 1 |
|
- | ||||
| 1 | 4002F124-45 | Back, Broiler | 37 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 4002F094-80 | Back, Main | 1 |
|
- | ||||
| 3 | 3601W124-23 | Baffle, Oven Frt | 1 |
|
- | ||||
| 3 | 3601W124-19 | Baffle, Oven Front | 59 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 3 | 3601F059-45 | Baffle, Oven Top | 1 |
|
- | ||||
| 4 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 5 | 7401P006-60 | Block, Disconnect | 1 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 4011F149-80 | Bottom, Broiler | 1 |
|
- | ||||
| 7 | 4011F095-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 8 | 2205F020-21 | Bottom, Oven | 59 |
|
- | ||||
| 8 | 2205F012-23 | Bottom, Oven | 1 |
|
- | ||||
| 9 | 7725P005-60 | Bowl, Drip | 1 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 10 | 4006W026-80 | Box, Flue | 1 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 11 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 58 |
|
$ 26.33 | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 58 |
|
Immediately | $ 4.69 | |||
| 11 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 11 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 11 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 12 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 12 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 13 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 14 | 4005F005-45 | Cover | 1 |
|
- | ||||
| 14 | 4005F088-80 | Cover | 1 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 15 | 4012F019-80 | Front, Burner Box | 1 |
|
- | ||||
| 16 | 2201F034-23 | Front, Oven Lower | 1 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 17 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 17 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 1 |
|
$ 6.47 | ||||
| 18 | 2003F003-00 | Grate, Burner | 1 |
|
- | ||||
| 19 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 19 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 20 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 20 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 20 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 21 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 22 | 4009F045-45 | Lining, Broiler Side | 1 |
|
- | ||||
| 23 | 4009W040-80 | Lining, Inner Side | 1 |
|
- | ||||
| 24 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 24 | 7431P006-60 | Module, Spark | 1 |
|
- | ||||
| 25 | 2616F010-84 | Panel, Upper Front (alm) | 1 |
|
- | ||||
| 25 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 1 |
|
Immediately | $ 6.85 | |||
| 25 | 7712A029-60 | Trim Assy, Manifold | 1 |
|
- | ||||
| 25 | 2616F060-84 | Panel, Manifold Almond | 1 |
|
- | ||||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 26 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 26 | 2618F073-74 | Panel, Side (alm) | 46 |
|
- | ||||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 27 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 28 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 29 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 30 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 31 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.29 | ||||
| 32 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 33 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 34 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 35 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 36 | 7212P001-60 | Seal | 1 |
|
- | ||||
| 36 | 8003P011-60 | Spacer, Main Top | 46 |
|
- | ||||
| 36 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 37 | 7803P013-60 | Spring | 1 |
|
- | ||||
| 37 | 7208P007-60 | Seal, Silastic | 1 |
|
- | ||||
| 38 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 39 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 40 | 3807F221-80 | Support, Top Burner | 1 |
|
- | ||||
| 41 | 2001F040-84 | Top, Main Almond | 1 |
|
- | ||||
| 42 | WP4159193 | Screw (Replaces: 7101P115-60) | 1 |
|
$ 4.29 | ||||
| 42 | 3404A013-51 | Track, Broiler Dwr Right | 1 |
|
- | ||||
| 42 | 3404A014-51 | Track, Broiler Dwr Left | 1 |
|
- | ||||
| 43 | 7728P057-60 | Trim, Manifold Insert | 1 |
|
- | ||||
| 44 | 7402P014-60 | Cord, Power | 1 |
|
- | ||||
| 45 | 8112P032-60 | Manual, Use & Care | 1 |
|
- |
