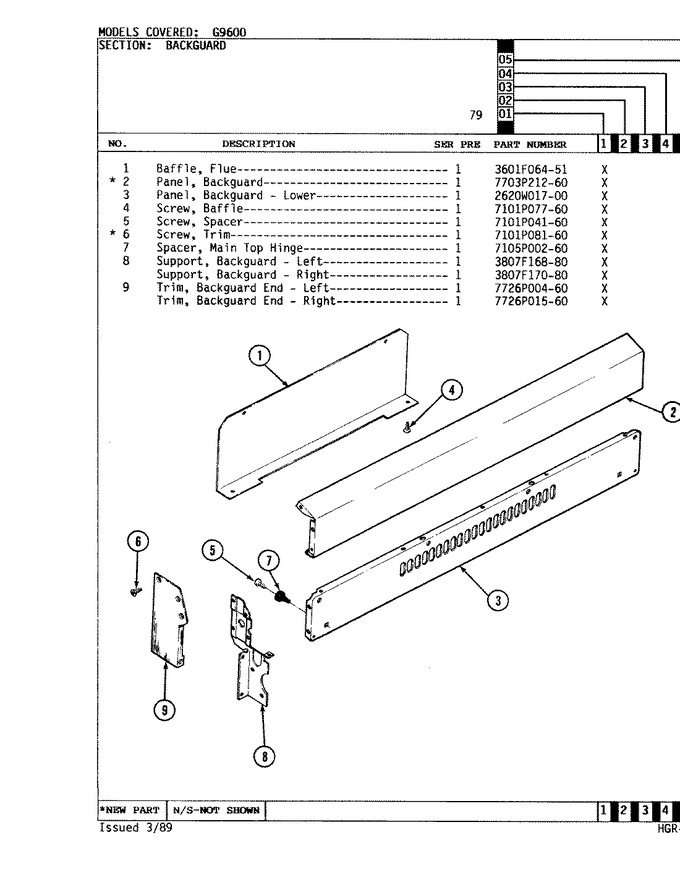

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F064-51 | Baffle, Flue | 1 |
|
- | ||||
| 2 | 7703P212-60 | Trim, Bkgd Panel | 1 |
|
- | ||||
| 3 | 2620W017-00 | Panel, Bkgd Lwr Blk | 1 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 5 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | 7101P081-60 | Screw | 1 |
|
- | ||||
| 7 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 8 | 3807F170-80 | Support | 1 |
|
- | ||||
| 8 | 3807F168-80 | Support | 1 |
|
- | ||||
| 9 | 8112P053-60 | Manual, Use & Care | 01 |
|
- | ||||
| 9 | 7726P015-60 | Trim | 1 |
|
- | ||||
| 9 | 7726P004-60 | Trim | 1 |
|
- |
