SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Controls


04 - Door


05 - Drawer

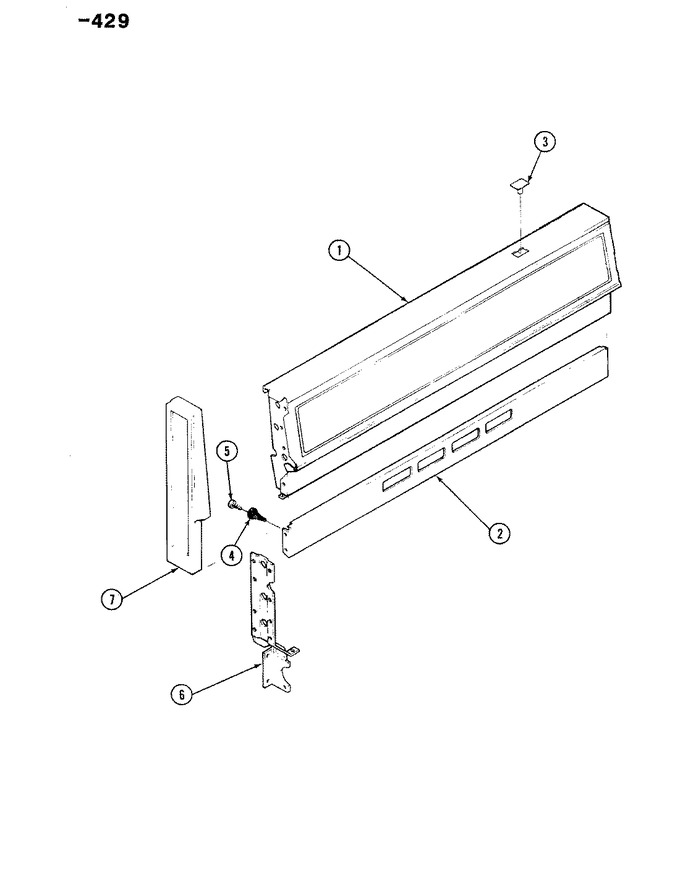

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F071-80		Cover, Bkgd. Wire	1-31	Appelez-nous	-
1	W10124350		Not Required Part Or See Note	32	Appelez-nous	-
1	2601W269-81		Panel, Bkgd	1-29	Appelez-nous	-
1	2601W289-81		Panel, Bkgd Wht	30	Appelez-nous	-
1	4005F034-80		Cover, Bottom	1-31	Appelez-nous	-
1	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
2	2620W018-00		Panel, Bkgd Lower	1	Appelez-nous	-
3	7718P009-60		Plug, Hole	1-29	Appelez-nous	-
3	W10124350		Not Required Part Or See Note	30	Appelez-nous	-
4	7105P002-60		Support, Main Top	1	Appelez-nous	-
5	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
6	3807W010-80		Support, Bkg Left	1	Appelez-nous	-
6	3807W011-80		Support, Bkg Right	1	Appelez-nous	-
7	7726P021-60		End Cap, Backguard (rt-chr)	1	Appelez-nous	-
7	7726P010-60		End Cap, Backguard (lt-chr)	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
