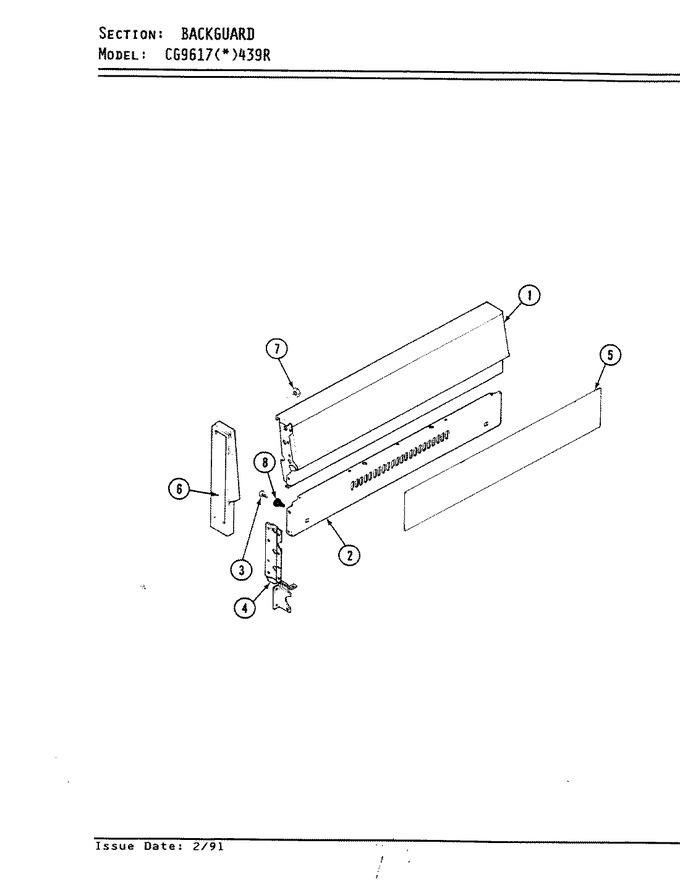

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2601W299-81 | Panel Bkgd Wht | 1 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 2620W053-23 | Panel, Lower Bkgd. (blk) | 1 |
|
- | ||||
| 3 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 4 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | 3807W358-51 | Support Bkgd Rt | 1 |
|
- | ||||
| 4 | 3807W357-51 | Support Bkgd Lf | 1 |
|
- | ||||
| 5 | 7703P247-60 | Trim, Inlay | 1 |
|
- | ||||
| 6 | 7726P021-60 | End Cap, Backguard (rt-chr) | 1 |
|
- | ||||
| 6 | 7726P010-60 | End Cap, Backguard (lt-chr) | 1 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 7 | 7101P086-60 | Screw, 8-32 X 1/2 | 1 |
|
- | ||||
| 8 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 |
