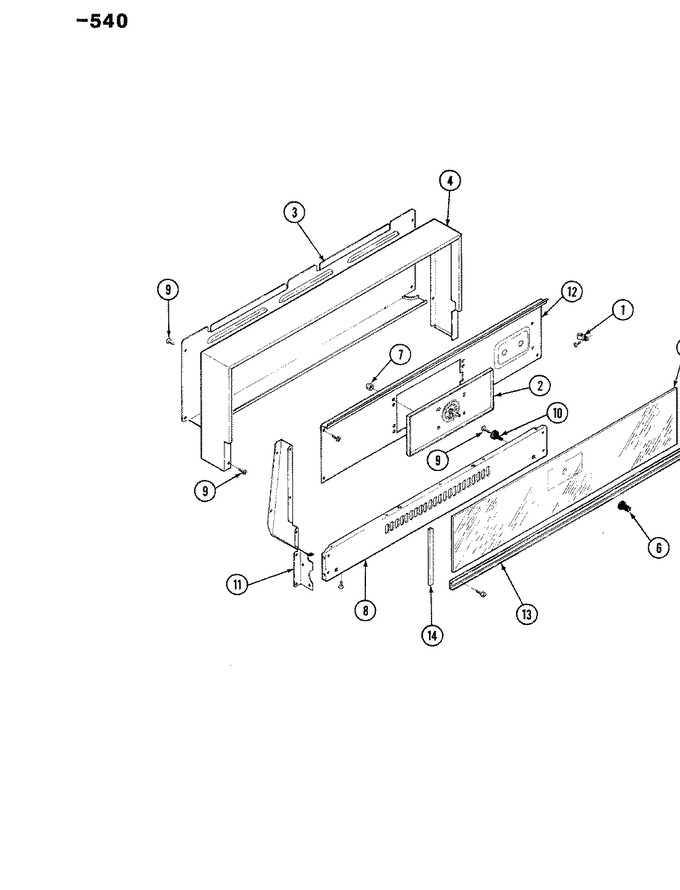

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7111P015-60		Clamp, Wire	1	Appelez-nous	-
2	7602P110-60		Clock	65	Appelez-nous	-
2	7602P069-60		Clock, Regular	1	Appelez-nous	-
3	4005F213-51		Cover, Bkgd Wires	1	Appelez-nous	-
4	3603F026-70		Frame Bkgd	1	Appelez-nous	-
5	7910P015-60		Glass, Backguard	1	Appelez-nous	-
5	7910P077-60		Glass Bkgd	1	Appelez-nous	-
5	7910P086-60		Glass Bkgd	35	Appelez-nous	-
6	7711P410-60		Knob Clock	1	Appelez-nous	-
6	7701P007-60		Handle, Door	55	Appelez-nous	-
7	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	1			$ 4.00
8	2620W044-90		Panel, Bkgd. Lwr (black)	1	Appelez-nous	-
9	7214P007-60		Sleeve, Switch (blk)	1	Appelez-nous	-
9	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
10	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
11	3807F342-51		Support, Backguard (left)	1	Appelez-nous	-
11	3807F341-51		Support, Bkgd (right)	1	Appelez-nous	-
12	7403P109-60		Switch, Push (blk)	1	Appelez-nous	-
12	3807F279-51		Support, Clock	1	Appelez-nous	-
13	7716P017-60		Trim, Backguard Bottom	1	Appelez-nous	-
13	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
14	7742P001-60		Trim, Glass Retainer	1	Appelez-nous	-
