SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Controls


04 - Door (-7 Model)


05 - Drawer

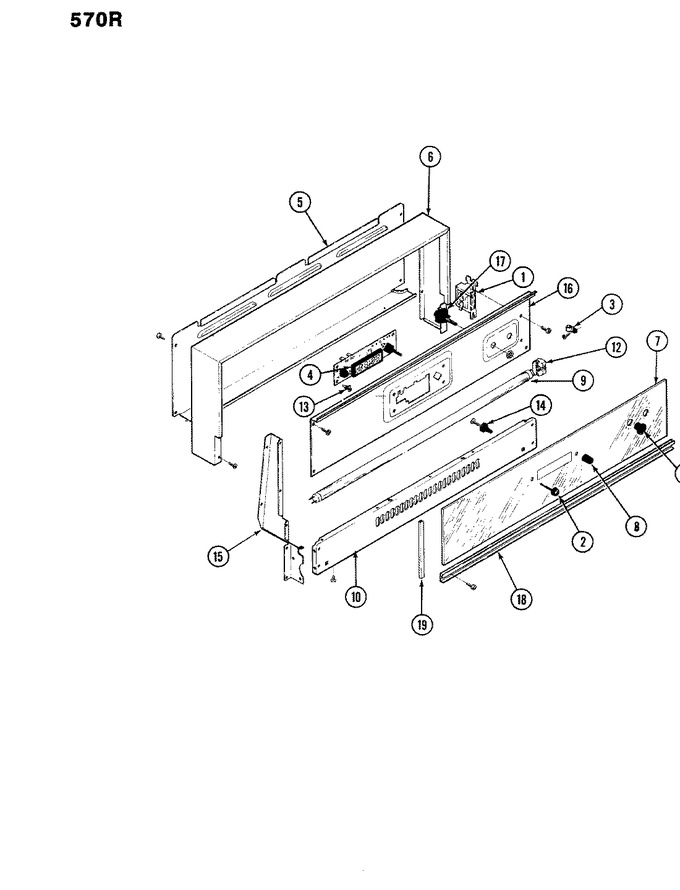

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7412P007-60		Ballast	1	Appelez-nous	-
2	7711P171-60		Knob, Clock (button-blk)	1			$ 19.90
3	7111P015-60		Clamp, Wire	1	Appelez-nous	-
4	7602P095-60		Clock	37	Appelez-nous	-
4	7601P132-60		Clock	1-36	Appelez-nous	-
5	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
5	4005F213-51		Cover, Bkgd Wires	1	Appelez-nous	-
6	3603F026-70		Frame Bkgd	1	Appelez-nous	-
6	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
7	7910P016-60		Glass, Backguard	1	Appelez-nous	-
8	7711P172-60		Knob, Clock (blk)	1			$ 23.55
9	WPY0067945		Bulb, Fluorescent Light   (Replaces: 7407P038-60)	1			$ 29.33
10	2620W044-90		Panel, Bkgd. Lwr (black)	1	Appelez-nous	-
11	7214P004-60		Sleeve, Heat Shrink	1	Appelez-nous	-
12	5700A251-60		Socket Assy (10`` Lead)	1	Appelez-nous	-
12	5700A252-60		Socket Assy (32``&38``lead)	1	Appelez-nous	-
13	8010P037-60		Fastener, Spacer	1	Appelez-nous	-
14	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
15	3807F341-51		Support, Bkgd (right)	1	Appelez-nous	-
15	3807F342-51		Support, Backguard (left)	1	Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
16	3807F280-51		Support, Clock	1	Appelez-nous	-
17	7403P133-60		Switch----na	1	Appelez-nous	-
17	7403P109-60		Switch, Push (blk)	1	Appelez-nous	-
18	7716P017-60		Trim, Backguard Bottom	1	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
19	7742P001-60		Trim, Glass Retainer	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
