SELECT A DIAGRAM

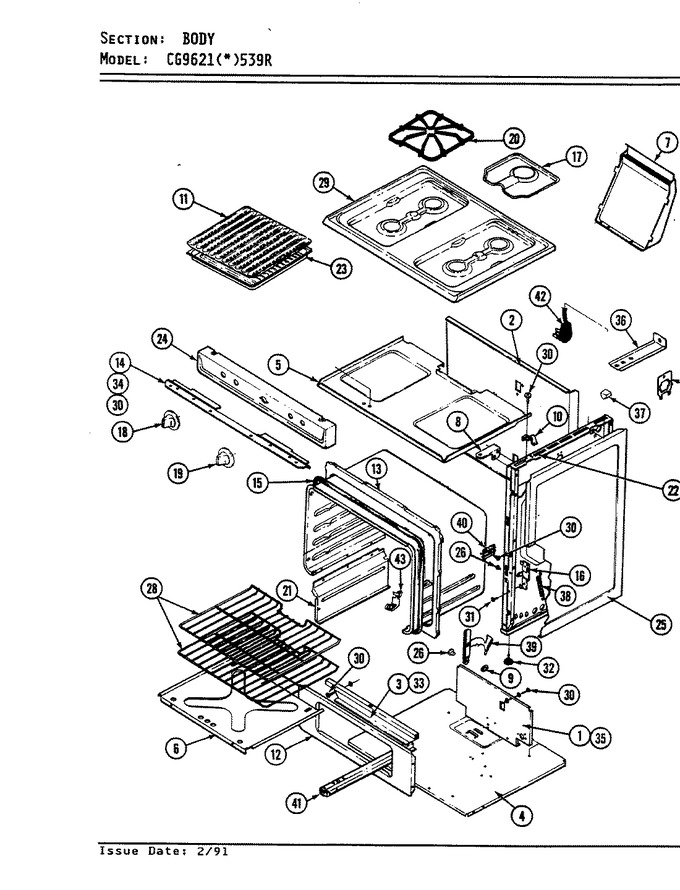

01 - Body


02 - Control Panel


03 - Controls


04 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F279-45		Cover, Bkgd Broil Section	1	Appelez-nous	-
1	4002F124-45		Back, Broiler	1	Appelez-nous	-
2	4005F088-80		Cover	1	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
2	4002F130-80		Back, Main	1	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
3	3601W124-23		Baffle, Oven Frt	1	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
4	4011F161-80		Bottom, Broiler	1	Appelez-nous	-
5	4011F095-80		Bottom, Burner Box	1	Appelez-nous	-
6	2205F012-23K		Bottom, Oven	1	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
7	4006W026-80		Box, Flue	1	Appelez-nous	-
8	3801F049-34		Bracket,control Panel (l)	1	Appelez-nous	-
8	3801F047-34		Bracket,control Panel (r)	1	Appelez-nous	-
9	7112P019-60		Clip, Hinge Pin	1	Appelez-nous	-
10	7112P073-60		Clip, Top Retainer	1	Appelez-nous	-
11	3413F002-23		Insert, Broil Pan	1	Appelez-nous	-
12	2201F034-23		Front, Oven Lower	1	Appelez-nous	-
12	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
13	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
14	4012F021-80		Front, Burner Box	1	Appelez-nous	-
15	7212P001-60		Seal	1	Appelez-nous	-
16	8016P008-60		Glide, Oven Door Hinge	1	Appelez-nous	-
16	3418A030-34		Hinge Assy. (rt)	1	Appelez-nous	-
16	3418A029-34		Hinge Assy. (lt)	1			$ 48.47
17	7725P005-60		Bowl, Drip	1	Appelez-nous	-
18	7731P031-60		Knob, Thermostat	1	Appelez-nous	-
19	7711P380-60		Knob, Valve	1	Appelez-nous	-
20	2003F003-00		Grate, Burner	1	Appelez-nous	-
21	4009F045-45		Lining, Broiler Side	1	Appelez-nous	-
22	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
22	7103P045-60		Nut, Nylon	1	Appelez-nous	-
22	8008P012-60		Grommet, Nylon	1	Appelez-nous	-
22	4009W071-80		Lining, Inner Side	1	Appelez-nous	-
23	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
24	WP4159193		Screw   (Replaces: 7118P004-60)	1			$ 4.29
24	WP25-7220		Clip, Top Retainer   (Replaces: 7112P042-60)	1			$ 10.77
24	2616F024-90		Panel, Manifold Black	1	Appelez-nous	-
25	2618F073-71		Panel, Side (wht)----na	1	Appelez-nous	-
26	7113P002-60		Pin, Hinge	1			$ 9.05
27	3801F021-45		Bracket	1	Appelez-nous	-
28	7801P030-60		Rack, Oven	1			$ 57.14
29	2001F040-81		Top, Main White	1	Appelez-nous	-
30	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
31	WP4159193		Screw   (Replaces: 7101P112-60)	1			$ 4.29
32	Y7101P25460		Leg, Leveling	1	Appelez-nous	-
33	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	1			$ 6.47
34	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
35	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	1		Immediately	$ 7.69
36	3801F198-51		Bracket, Tie-down	1	Appelez-nous	-
37	8003P011-60		Spacer, Main Top	1	Appelez-nous	-
38	WP7803P058-60		Spring, Oven Door   (Replaces: 7803P058-60)	1			$ 16.55
39	3420A033-34		Stop, Oven Door	1	Appelez-nous	-
40	3807F205-45		Support, Oven Rear	1	Appelez-nous	-
41	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
41	3404A013-51		Track, Broiler Dwr Right	1	Appelez-nous	-
41	3404A014-51		Track, Broiler Dwr Left	1	Appelez-nous	-
41	WP4159193		Screw   (Replaces: 7101P115-60)	1			$ 4.29
42	7402P014-60		Cord, Power	1	Appelez-nous	-
42	8007P003-60		Bushing, Snap	1	Appelez-nous	-
43	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	1		Immediately	$ 11.07
