SELECT A DIAGRAM
01 - Body
02 - Control (cgx2d21)

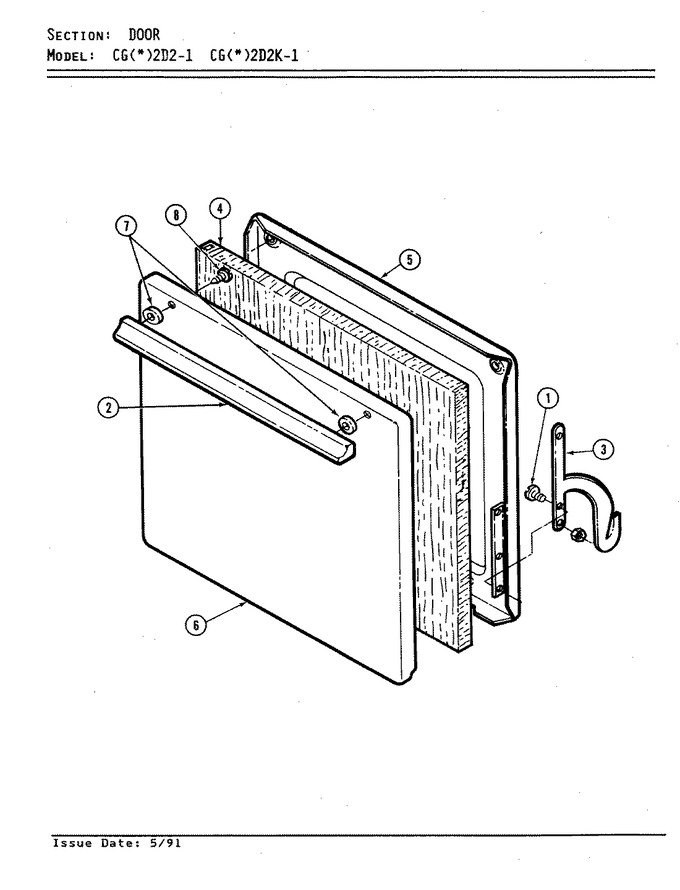

03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7118P009-60 | Bolt, Shoulder | 1 |
|
- | ||||
| 2 | 7701P029-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 3 | 7002P102-60 | Insulation, Oven Door | 1 |
|
- | ||||
| 4 | 3418F053-34 | Hinge, Oven Door | 1 |
|
- | ||||
| 5 | 2402W102-23 | Lining, Ov Dr | 1 |
|
- | ||||
| 6 | 2401W059-74 | Panel, Oven Door (alm) | 1 |
|
- | ||||
| 6 | 2401W059-71 | Panel, Oven Door (wht) | 1 |
|
- | ||||
| 7 | 8010P020-60 | Spacer, Door Handle | 1 |
|
- | ||||
| 7 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 1 |
|
$ 12.06 | ||||
| 7 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 1 |
|
$ 6.77 | ||||
| 8 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 1 |
|
$ 12.13 | ||||
| 8 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1 |
|
Immediately | $ 7.69 | |||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 1 |
|
Immediately | $ 6.85 |
