SELECT A DIAGRAM

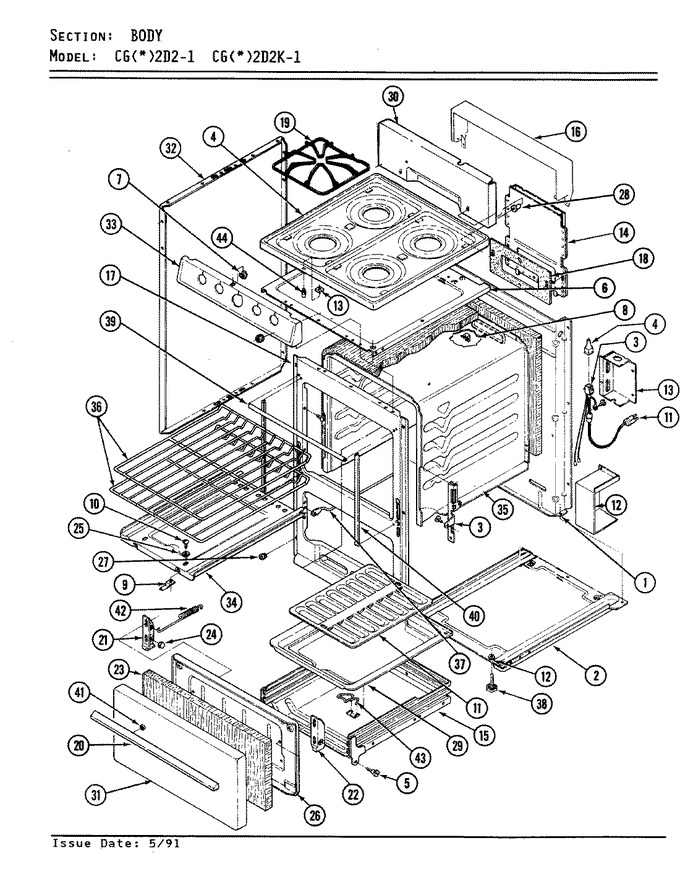

01 - Body


02 - Control (cgx2d2k1)


03 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F137-80		Back, Main	1	Appelez-nous	-
2	4003F016-80		Base, Main	1	Appelez-nous	-
3	7401P017-60		Block, Disconnect (pin)	1	Appelez-nous	-
4	Y7405P01560		Female Pin Terminal	1	Appelez-nous	-
5	7118P008-60		Bolt, Shoulder	1	Appelez-nous	-
6	4011F164-80		Box, Burner	1	Appelez-nous	-
7	8002P022-60		Spring, Catch - Female	1	Appelez-nous	-
8	7112P053-60		Clip, Capillary	1	Appelez-nous	-
9	3819F011-61		Clip, Oven Bottom Pl	1	Appelez-nous	-
10	WP4159193		Screw   (Replaces: 7118P004-60)	1			$ 4.29
11	7402P018-60		Cord, Power	1	Appelez-nous	-
12	4005F318-51		Cover, Module Spark	1	Appelez-nous	-
13	4005F326-51		Cover, Wire Assembly	1	Appelez-nous	-
14	4006W062-45		Box Flue Vent	1	Appelez-nous	-
15	3407W005-23		Drawer Broiler	1	Appelez-nous	-
16	M0282009		Nut 10-24   (Replaces: 7103P071-60)	1			$ 12.06
16	WP3400074		Screw   (Replaces: 7101P068-60)	1			$ 6.47
16	3603F017-50		Frame, Backguard	1	Appelez-nous	-
17	M0282009		Nut 10-24   (Replaces: 7103P071-60)	1			$ 12.06
17	WP7101P072-60		Screw   (Replaces: 7101P072-60)	1			$ 6.77
17	2201W048-23		Front, Main	1	Appelez-nous	-
18	7201P038-60		Gasket, Vent Deflect	1	Appelez-nous	-
19	2003W026-00		Grate (blk)	10	Appelez-nous	-
19	2003W001-00		Grate	1-9	Appelez-nous	-
20	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	1		Immediately	$ 7.69
20	7701P012-60		Handle, Drawer (chr)	1	Appelez-nous	-
21	3418F034-80		Hinge, Broiler Drawer (lt)	1	Appelez-nous	-
22	3418F035-80		Hinge, Broiler Drawer (rt)	1	Appelez-nous	-
23	7002P067-60		Insulation, Broiler Door	1	Appelez-nous	-
24	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	1			$ 4.00
25	7109P015-60		Washer	1	Appelez-nous	-
26	2404F022-23		Lining, Broiler Drawer	1	Appelez-nous	-
27	7103P080-60		Nut, Expansion	1	Appelez-nous	-
28	7103P089-60		Nut, Projection Weld	1	Appelez-nous	-
28	WP7101P072-60		Screw   (Replaces: 7101P072-60)	1			$ 6.77
29	4396923		Pan, Broiler   (Replaces: 3401F016-23)	1		Immediately	$ 52.04
31	2403W019-74		Panel, Drawer (alm)	1	Appelez-nous	-
32	2618F070-74		Panel, Side (alm)	1	Appelez-nous	-
33	2616F069-74		Panel, Manifold (alm)	1	Appelez-nous	-
33	7103P100-60		Nut, Tinnerman	1	Appelez-nous	-
33	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
34	5720A003-23		Plate, Oven Bottom	1	Appelez-nous	-
35	2208W080-23		Oven Assy.	1	Appelez-nous	-
36	7801P019-60		Rack, Oven	1	Appelez-nous	-
37	WP3400074		Screw   (Replaces: 7101P068-60)	1			$ 6.47
37	3808F007-61		Rod, Broiler Runner (lt)	1	Appelez-nous	-
37	3808F008-61		Rod, Broiler Runner (rt)	1	Appelez-nous	-
37	W10080180		Nut   (Replaces: 7103P034-60)	1			$ 12.13
38	Y7101P25460		Leg, Leveling	1	Appelez-nous	-
39	7212P014-60		Seal, Door (top)	1			$ 48.10
40	7212P015-60		Seal, Door (side)	1			$ 45.93
41	8010P020-60		Spacer, Door Handle	1	Appelez-nous	-
42	7803P032-60		Spring, Oven Door	1			$ 4.83
42	7803P033-60		Spring, Broiler Drawer	1	Appelez-nous	-
43	7809P004-60		Stop, Broiler Drawer	1	Appelez-nous	-
44	8024P003-60		Strike, Main Top	1	Appelez-nous	-
NI	3807F291-34		Support, Hinge (rt)	1	Appelez-nous	-
NI	WP7101P072-60		Screw   (Replaces: 7101P072-60)	1			$ 6.77
NI	3807F290-34		Support, Hinge (lt)	1	Appelez-nous	-
NI	M0282009		Nut 10-24   (Replaces: 7103P071-60)	1			$ 12.06
NI	WP3400094		Screw, W/washer   (Replaces: 7101P188-60)	1			$ 7.14
NI	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	5		Immediately	$ 4.69
NI	4396923		Tray, Broiler   (Replaces: 3413F007-23)	1		Immediately	$ 52.04
NI	7103P107-60		Nut, Leveling	1	Appelez-nous	-
NI	WP486255		Nut, Strike   (Replaces: 7103P105-60)	1			$ 5.54
NI	7719P060-60		Nameplate	1	Appelez-nous	-
NI	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	5			$ 26.33
NI	2001F050-84		Top, Main (alm)	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
