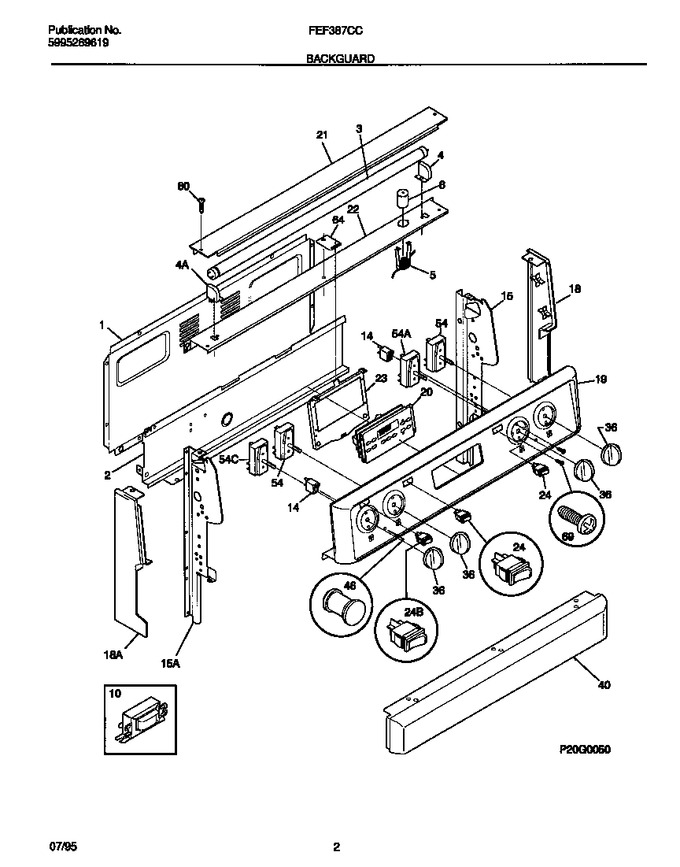

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316049106		Support, Backguard, Rh		Appelez-nous	-
18	316026906		End Cap, Almond, Rh		Appelez-nous	-
19	316024524		Panel-control, Metal		Appelez-nous	-
20	316027415		Clock/timer, Eoc		Appelez-nous	-
21	316024903		Trim-canopy/shield, Almond		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060003		Bracket, Clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker, Almond, (2)		Appelez-nous	-
36	316025107		Knob-control, Infinite Sw, Almond		Appelez-nous	-
40	316025809		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
64	316062400		Retainer, Plate, 64		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8)		Appelez-nous	-
*62080	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*62081	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316049107		Support, Backguard, Lh		Appelez-nous	-
18A	316026907		End Cap, Almond, Lh		Appelez-nous	-
24B	316076302		Switch-rocker, Almond, Dual Element		Appelez-nous	-
4A	3051223		Receptacle-lamp, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54C	5304528972		Switch-6/8   (Replaces: 316049800)				$ 47.78
