SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Controls

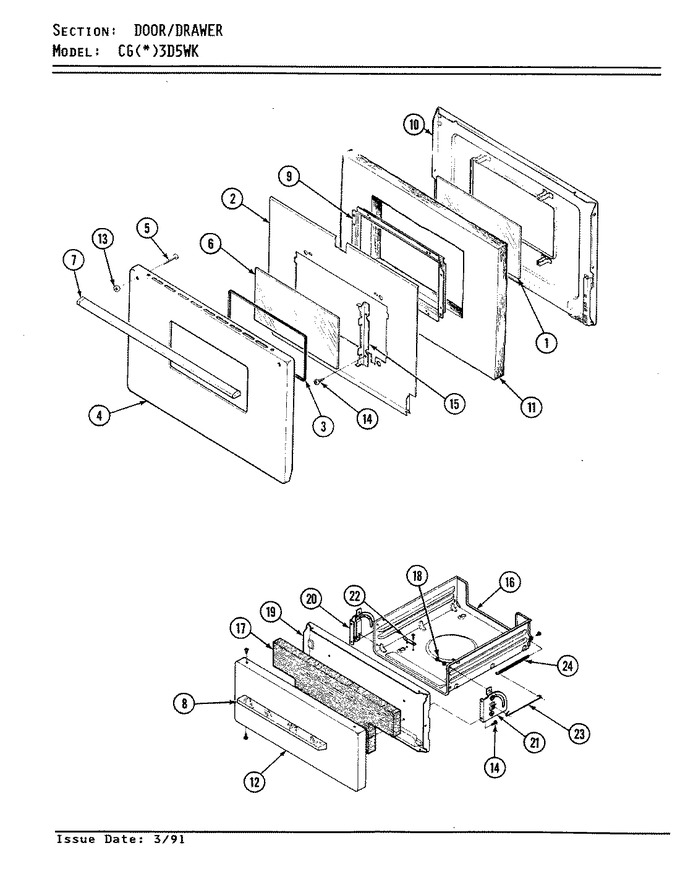

04 - Door/drawer (cgx3d5wk)


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P035-60		Glass, Door Inner	1	Appelez-nous	-
2	3601F094-51		Baffle, Oven Door	1	Appelez-nous	-
3	7201P017-60		Gasket, Window	1			$ 52.69
4	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	1			$ 6.47
4	2401F042-74		Panel, Door (alm)	1	Appelez-nous	-
5	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	1		Immediately	$ 7.69
6	7902P051-60		Glass	1	Appelez-nous	-
7	7701P030-60		Handle, Door (chr)	1	Appelez-nous	-
8	74002481		Screw, Handle   (Replaces: 7101P283-60)	1			$ 5.82
8	7701P012-60		Handle, Drawer (chr)	1	Appelez-nous	-
9	3603F013-80		Frame, Window----na	1	Appelez-nous	-
10	2402W154-23		Lining, Door	1	Appelez-nous	-
11	7002P012-60		Insulation, Door	1	Appelez-nous	-
12	2416F025-74		Panel, Drawer (alm)	1	Appelez-nous	-
13	8010P002-60		Spacer, Handle	1	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
15	3804F095-80		Retainer, Glass	1	Appelez-nous	-
16	3407W009-23		Drawer, Broiler	1	Appelez-nous	-
16	7101P114-60		Screw	1	Appelez-nous	-
17	7002P002-60		Insulation	1	Appelez-nous	-
18	WP74004005		Screw   (Replaces: 7101P076-60)	1			$ 6.95
18	7103P067-60		Lock Nut, Catch	1	Appelez-nous	-
19	2404F021-23		Lining, Broiler	1	Appelez-nous	-
19	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
20	3418A063-34		Hinge, Broiler (lt)	1	Appelez-nous	-
21	3418A062-34		Hinge, Broiler (rt)	1	Appelez-nous	-
22	8002P001-60		Catch	1	Appelez-nous	-
23	7807P001-60		Link, Broiler	1	Appelez-nous	-
24	7803P014-60		Spring	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
