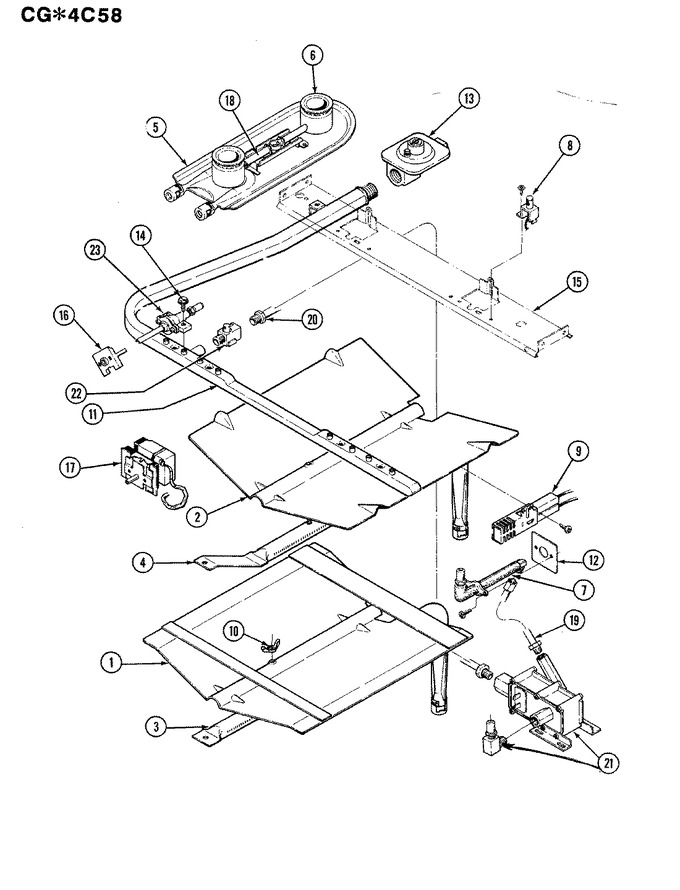

SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W129-15 | Baffle, Bake Burner | 1 |
|
- | ||||
| 2 | 3601W130-45 | Baffle, Bake & Broil | 1 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 1 |
|
- | ||||
| 5 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 6 | 4005F176-80 | Cover, Module | 1 |
|
- | ||||
| 6 | 7504P001-60 | Cap, Burner | 1 |
|
- | ||||
| 7 | 7507P024-60 | Fitting, Broil Burne | 1-27 |
|
- | ||||
| 7 | 7507P028-60 | Fitting, Broil Burner | 28 |
|
- | ||||
| 8 | 7432P015-60 | Igniter, Top Burner | 1 |
|
$ 53.77 | ||||
| 8 | 7432P008-60 | Igniter, Top (lt) | 1 |
|
- | ||||
| 9 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 1 |
|
Immediately | $ 60.44 | |||
| 9 | 7431P006-60 | Module, Spark | 1 |
|
- | ||||
| 10 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 11 | 7513P044-60 | Pipe, Manifold | 1 |
|
- | ||||
| 12 | 3605F019-50 | Plate, Fitting | 1 |
|
- | ||||
| 13 | 7510P004-60 | Regulator, Pressure | 1 |
|
- | ||||
| 14 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 15 | 3807F221-80 | Support, Top Burner | 1 |
|
- | ||||
| 16 | WP7403P190-60 | Switch, Top Burner (Replaces: 7403P041-60) | 1 |
|
$ 118.82 | ||||
| 17 | 7515P005-60 | Thermostat | 1-23 |
|
- | ||||
| 17 | 7515P020-60 | Thermostat, Ov | 24 |
|
- | ||||
| 18 | 7506P006-60 | Tube, Flash | 1 |
|
- | ||||
| 19 | Y0936103 | 3/8 X 45 Tubing | 1 |
|
- | ||||
| 20 | Y0936102 | 3/8 X 72 Tubing | 1 |
|
- | ||||
| 21 | 7501P030-60 | Valve, Oven | 1-27 |
|
- | ||||
| 21 | 7501P034-60 | Valve, Broil & Bake | 28 |
|
- | ||||
| 22 | 7502P002-60 | Valve, Shut Off | 1 |
|
- | ||||
| 23 | 7502P031-60 | Valve | 1-32 |
|
- | ||||
| 23 | 7502P111-60 | Valve, Burner | 33 |
|
- |
