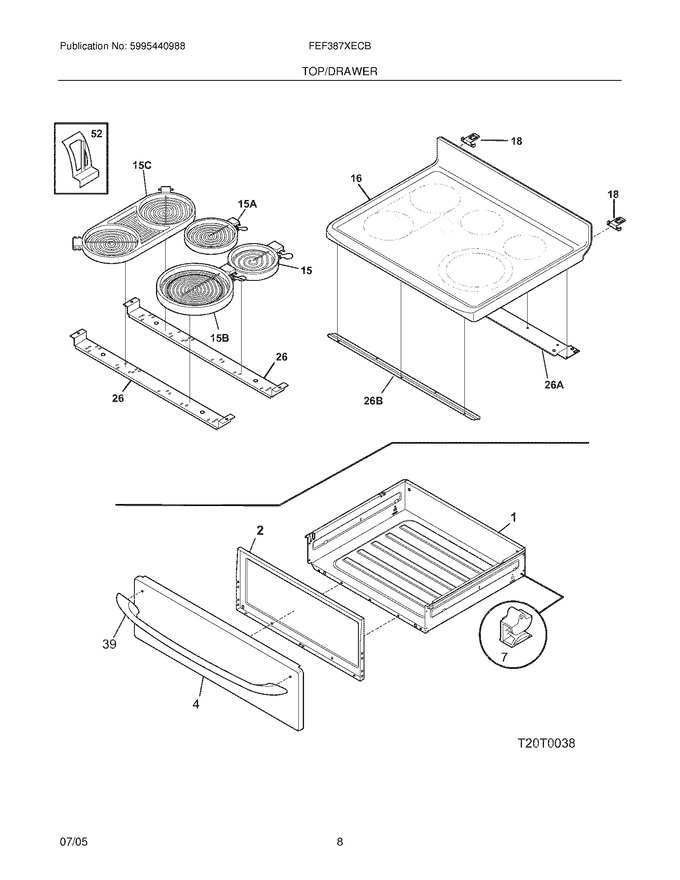

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231500		Liner,drawer				$ 54.40
4	316248804		Panel,drawer ,stainless		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316421291		Maintop,frame/glass ,black				$ 414.81
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	316427600		Channel,element Support ,(2)		Appelez-nous	-
39	316203000		Handle,door ,black		Appelez-nous	-
52	316278300		Clip,element Mtg		Appelez-nous	-
26A	316099202		Bracket,chassis Support ,rear		Appelez-nous	-
26B	316214200		Bracket,chassis Support ,front		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318198824		Element,surface ,warmer ,100 W		Appelez-nous	-
F15B	316555800		Element,dual ,9``/6`` ,surface ,1200w/1300w,radiant   (Replaces: 316418400)			Immediately	$ 138.90
F15C	316280701		Element,double 6`` ,surface ,4400w ,w/bridge   (Replaces: 316280700)				$ 273.34
NI	316416860		Harness,wiring ,surface		Appelez-nous	-
NI	316264000		Cleaner,cooktop		Appelez-nous	-
NI	316279700		Cleaner,stainless Steel		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
