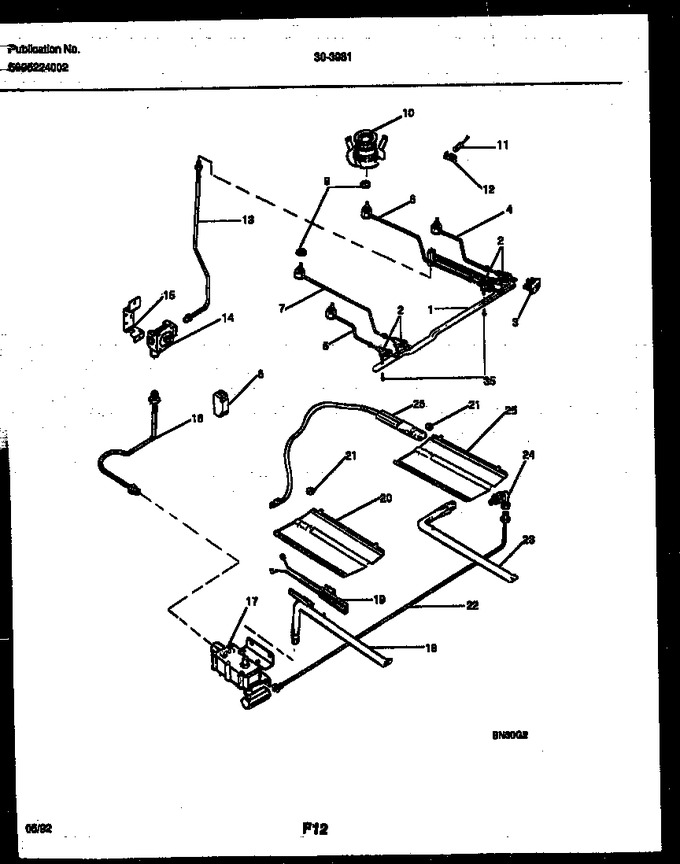

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271375		Manifold Pipe		Appelez-nous	-
2	316020401		Valve, Top, 3 Pos, (4)				$ 138.86
3	316032000		Switch-igniter, (4)				$ 58.70
4	5303283665		Burner-tube Rf		Appelez-nous	-
5	5303283666		Burner-tube Lf		Appelez-nous	-
6	5303283667		Burner-tube Rr		Appelez-nous	-
7	5303283668		Burner-tube Lr		Appelez-nous	-
8	5303200669		Igniter-module		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	5303011567		Burner-top, Snap-in, (4)		Appelez-nous	-
11	5303283573		Igniter-top Burner, (2)		Appelez-nous	-
12	3018617		Retainer, Igniter		Appelez-nous	-
13	5303208495		Tubing-reg./manf. Pipe		Appelez-nous	-
14	5303280582		Control-regulator		Appelez-nous	-
15	08067934		Bracket-regulator		Appelez-nous	-
16	5303208494		Tubing-valve/reg		Appelez-nous	-
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut   (Replaces: 5303013272)				$ 0.41
22	5303208493		Tubing-valve/mixer		Appelez-nous	-
23	08067935		Burner-broiler				$ 142.59
24	5303208640		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	5303935068		Ignitor-broiler   (Replaces: 5308067970)				$ 166.55
35	5303269845		Screw-burner Mtg, Hex Washer Head, 1/4-20 X 0.31, W/ Gas		Appelez-nous	-
