01 - Body (cgx6c5wk, Cx6c5gwk)

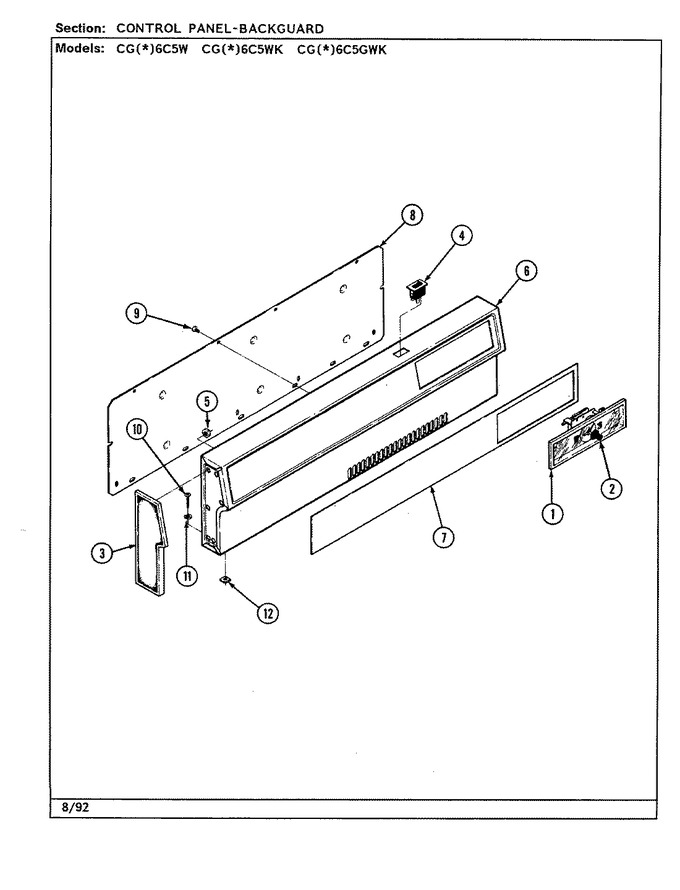

02 - Control Panel
03 - Door/drawer
04 - Gas Controls (cgx6c5wk, Cgx6c5gwk)
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P064-60 | Clock----na | 01 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 01 |
|
- | ||||
| 3 | 7726P003-60 | Trim | 01 |
|
- | ||||
| 3 | 7726P014-60 | Trim | 01 |
|
- | ||||
| 4 | 7403P067-60 | Switch (Replaces: 7403P020-60) | 01 |
|
$ 91.35 | ||||
| 4 | 7403P242-60 | Switch, Light | 16 |
|
- | ||||
| 5 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 6 | 2601W346-84 | Backguard | 16 |
|
- | ||||
| 6 | 2601W202-81 | Panel, Backguard White | 01 |
|
- | ||||
| 6 | 2601W202-84 | Panel, Backguard Almond | 01 |
|
- | ||||
| 6 | 7719P060-60 | Nameplate | 16 |
|
- | ||||
| 7 | 7703P184-60 | Inlay, Bkgd | 01 |
|
- | ||||
| 8 | 4005F036-80 | Shield | 01 |
|
- | ||||
| 9 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 10 | 7101P069-60 | Screw | 01 |
|
- | ||||
| 11 | 7109P033-60 | Lockwasher 1/4`` | 01 |
|
- | ||||
| 12 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 |
