SELECT A DIAGRAM

01 - Cover


02 - Backguard


04 - Body

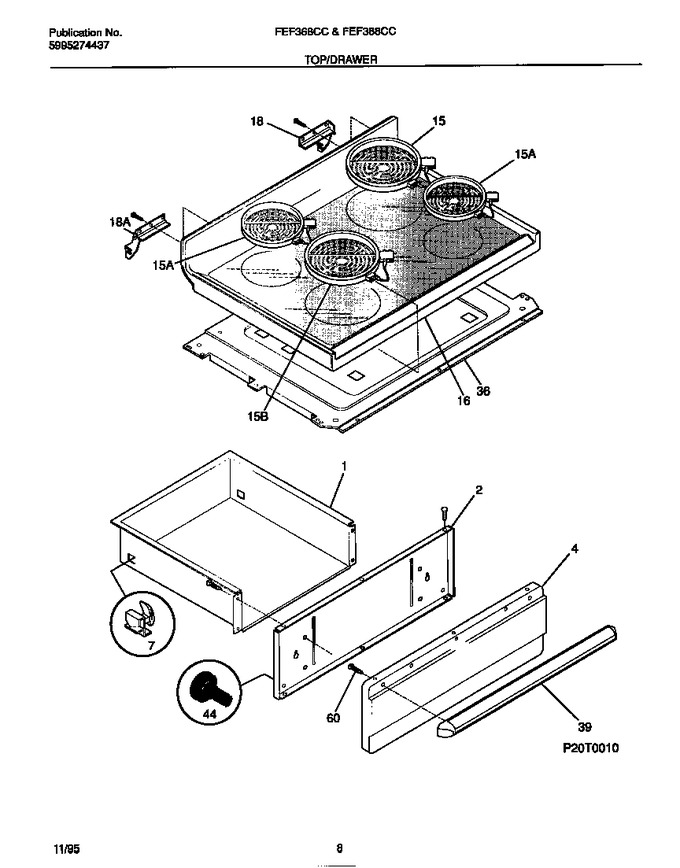

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316028000		Element-surface, Coil/halogen, Small/6 Inch, W/limit Swi		Appelez-nous	-
15	5303305628		Limiter Switch, Small/6 Inch		Appelez-nous	-
15	316049700		Element-surface, Dual Coil, 8 Inch, W/limit Switch		Appelez-nous	-
15	318198817		Element, Surface, Coil, Small/6 Inch, W/limit Switch   (Replaces: 316010200)			Immediately	$ 192.78
15	316027900		Element-surface, Coil/halogen, Large/8 Inch, W/limit Swi		Appelez-nous	-
16	316035547		Main Top Assy, Glass/steel, Enamel, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
39	316026104		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*25449	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*25450	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*25451	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*25452	5309951550		Cleaner-cooktop		Appelez-nous	-
36A	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
