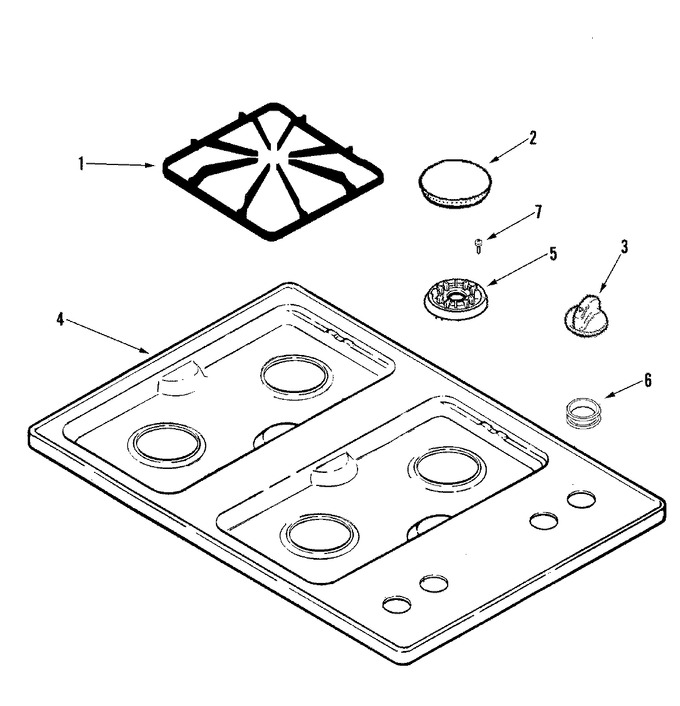

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001061 | Grate (gry) | 10 |
|
- | ||||
| 2 | 74007707 | Cap, Burner (gry) | 10 |
|
- | ||||
| 3 | WP7733P382-60 | Knob, Burner (wht) (Replaces: 74007700) | 10 |
|
$ 6.26 | ||||
| 4 | 74007687 | Top, Main (wht) | 10 |
|
- | ||||
| 5 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 79.64 | ||||
| 6 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 6.80 | |||
| 7 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| NI | 8111P472-60 | Manual, Use & Care | 12 |
|
- | ||||
| NI | 74007599 | Manual, Use & Care | 10 |
|
- |
