SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

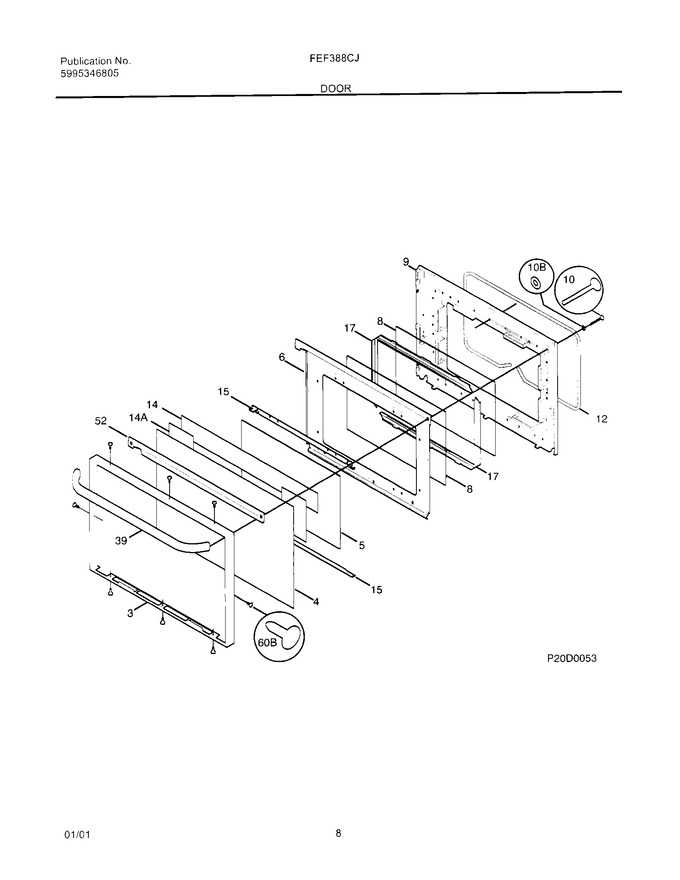

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089013		Glass-oven Door,white ,outer				$ 256.52
5	316117601		Glass-door Airwash 4mm,5		Appelez-nous	-
6	316091404		Shield-wool		Appelez-nous	-
8	5304503232		Glass-oven Door, Inner , (2)   (Replaces: 316117500)				$ 116.95
9	316066619		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg,wafer Hd Sq Dr ,10-24t X 2.00				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	316102203		Foil-aluminum, (2)		Appelez-nous	-
14	316102202		Foil-aluminum, (2)				$ 8.74
15	316081405		Bracket-glass, (2)		Appelez-nous	-
17	316117701		Spacer-glass,(2)				$ 53.66
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
52	316081301		Shield-oven Door, White, Top				$ 85.94
60	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34

    View Diagram in Separate Window       Print Part List
