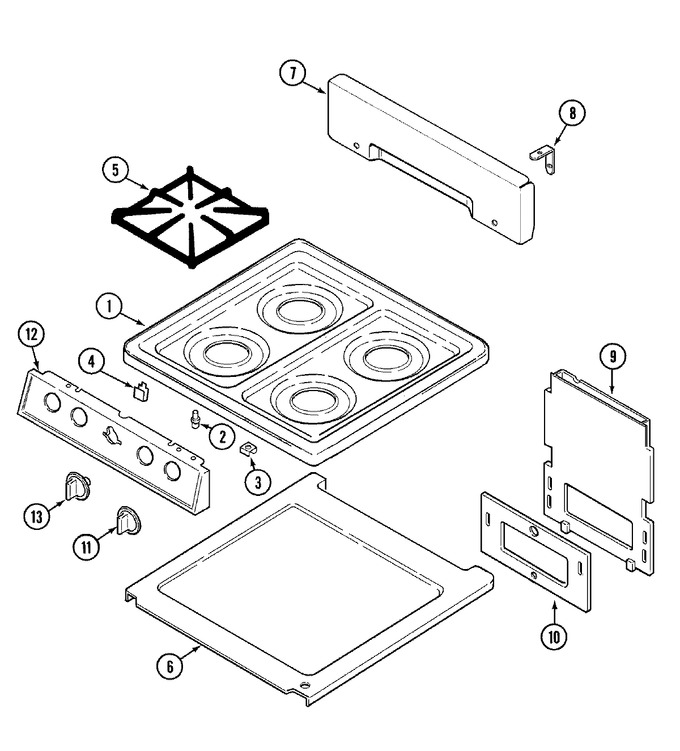

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001F050-81 | Top, Main (wht) | 10 |
|
- | ||||
| 1 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 | ||||
| 1 | 7103P089-60 | Nut, Projection Weld | 10 |
|
- | ||||
| 2 | 8024P003-60 | Strike, Main Top | 10 |
|
- | ||||
| 3 | WP486255 | Nut, Strike (Replaces: 7103P105-60) | 10 |
|
$ 5.54 | ||||
| 4 | 8002P022-60 | Spring, Catch - Female | 10 |
|
- | ||||
| 5 | WP2003X030-00 | Grate (blk) (Replaces: 74001086) | 10 |
|
$ 157.41 | ||||
| 6 | 74003292 | Box, Burner | 10 |
|
- | ||||
| 7 | 74003293 | Panel, Control (blk) | 10 |
|
- | ||||
| 8 | 74003271 | Bracket, Support | 10 |
|
- | ||||
| 9 | 74003294 | Deflector, Vent Box | 10 |
|
- | ||||
| 10 | 7201P038-60 | Gasket, Vent Deflect | 10 |
|
- | ||||
| 11 | 74003297 | Knob, Valve (blk) | 10 |
|
$ 16.59 | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 12 | 7103P100-60 | Nut, Tinnerman | 10 |
|
- | ||||
| 12 | 74003295 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 12 | 74005225 | Panel, Manifold (blk) | 13 |
|
- | ||||
| 13 | 74003909 | Knob, Thermostat (blk) | 10 |
|
$ 15.29 | ||||
| 13 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| NI | 74002356 | Manual, Use & Care (french) | 10 |
|
- | ||||
| NI | 74003054 | Manual, Use & Care | 10 |
|
- |
