SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

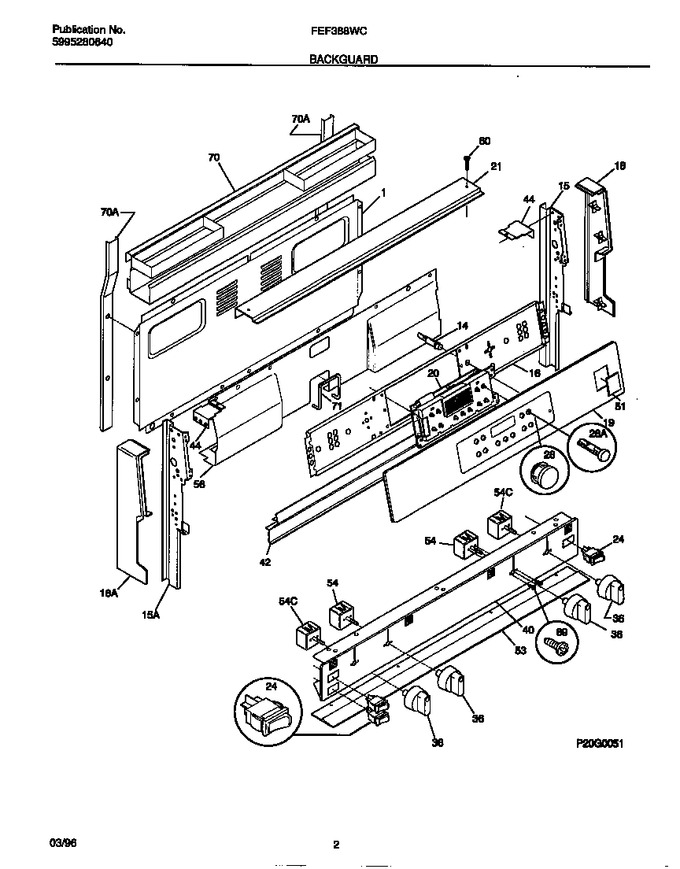

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
14	316034801		Light-indicator		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
16	316042605		Plate, Instrument Mtg, Black		Appelez-nous	-
18	316021801		End Cap, Black, Lh				$ 94.29
18	316021800		End Cap, Black, Rh				$ 81.32
19	316028347		Panel-control, Stainless		Appelez-nous	-
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
20	316080103		Clock/timer, Electronic				$ 333.53
21	316039204		Trim-canopy/shield		Appelez-nous	-
24	316083101		Switch-rocker, Rh				$ 85.01
24	316083100		Switch-rocker, Lh				$ 89.31
28	316080600		Shaft-push Button, Clock/timer/eoc				$ 49.41
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
36	316084900		Knob-control, 4		Appelez-nous	-
40	316062364		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082300		Nameplate		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	5304528972		Switch-6/8   (Replaces: 316049800)				$ 47.78
56	316074904		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
70	5303500001		Support, Spice Rack		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
71	316071901		Gasket-edge, Deflector B/g		Appelez-nous	-
*10360	316035700		Lens-light/lamp, Indicator		Appelez-nous	-
*10361	5303290288		Fastener		Appelez-nous	-
*10362	3018008		Shield-inf Switch		Appelez-nous	-
*10363	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*10364	316078000		Terminal-shield		Appelez-nous	-
*10365	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
