Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74009884 Back, Main (gas) 10 Appelez-nous -
1 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

1 W11577436 Grommet   (Replaces: 8008P010-60) 10 Appelez-nous -
1 WP3400074 Screw   (Replaces: 74004594) 10 Special Order $ 6.47

2 74004965 Panel, Side (bsq) 10 Appelez-nous -
2 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

3 74010038 Box, Burner 10 Appelez-nous -
4 W11233072 Screw (8bx3/8-ni)   (Replaces: 7101P338-60) 10 In-Stock Immediately $ 12.62

4 7401P037-60 Block, Terminal 10 Appelez-nous -
5 8010P087-60 Spacer, Main Top (lt) 10 Appelez-nous -
5 8010P088-60 Spacer, Main Top (rt) 10 Appelez-nous -
6 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

7 W11233072 Screw (8bx3/8-ni)   (Replaces: 7101P338-60) 10 In-Stock Immediately $ 12.62

7 74002366 Extension, Vent Box 10 Appelez-nous -
8 WP74003976 Screw, Shoulder   (Replaces: 74003976) 10 Special Order $ 6.47

8 74006420 Box, Vent 10 Appelez-nous -
8 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

9 74004591 Cover, Access 10 Appelez-nous -
9 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

10 74002369 Strap, Insulation Retainer 10 Appelez-nous -
11 WPW10348409 Screw, W/shoulder   (Replaces: 74007476) 10 In-Stock Immediately $ 6.98

11 W10857933 Spacer, Side Panel   (Replaces: 8004P024-60) 10 Special Order $ 7.07

12 74007556 Cord, Power 10 Appelez-nous -
13 W10876639 Hinge, Door   (Replaces: 74003239) 10 Special Order $ 129.21

14 WP4159193 Screw (10-24x5/16-ni)   (Replaces: 7101P282-60) 10 Special Order $ 4.29

15 74002634 Insulation, Oven Back 10 Appelez-nous -
15 74002370 Insulation, Oven Wrap 10 Appelez-nous -
16 W11693756 Screw (8abx19/32-zn)   (Replaces: 74003004) 10 In-Stock Immediately $ 12.65


    View Diagram in Separate Window     Print Icon   Print Part List

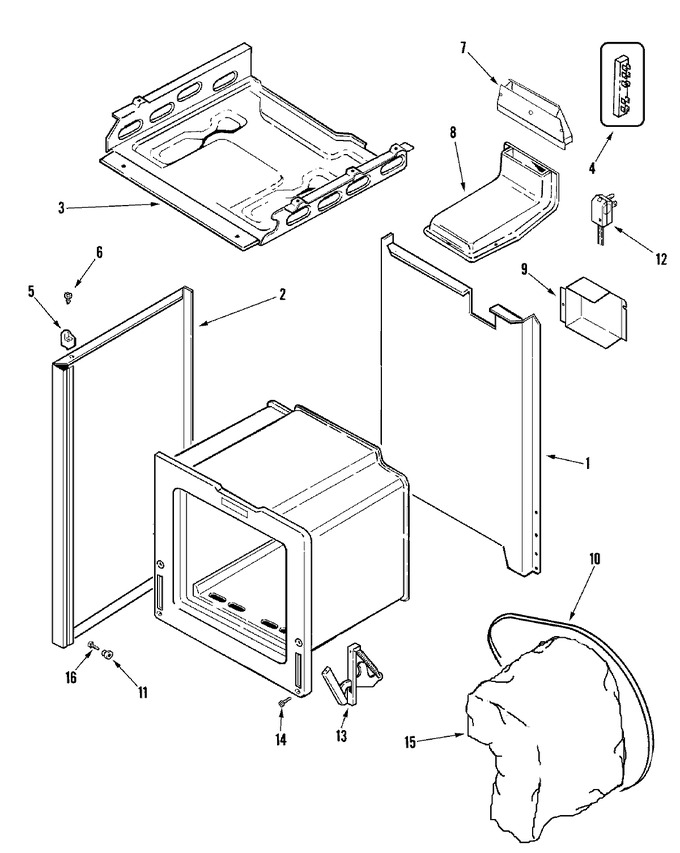

Diagram for CGR1110ADQ
