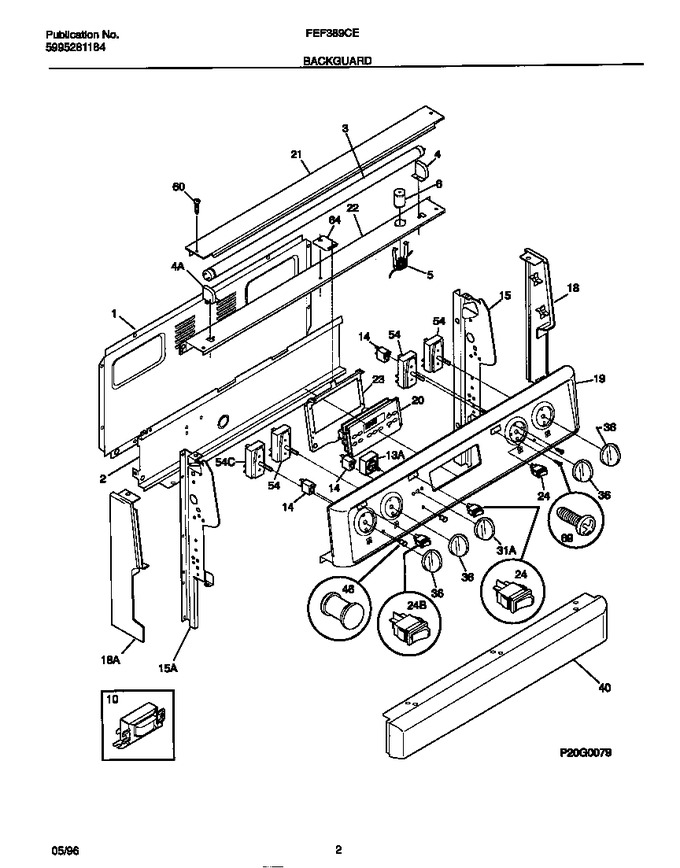

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
15	316049106		Support, Backguard, Rh		Appelez-nous	-
15	316049107		Support, Backguard, Lh		Appelez-nous	-
18	316026904		End Cap, White, Rh				$ 127.68
18	316026905		End Cap, White, Lh				$ 107.15
19	316024529		Panel-control, White		Appelez-nous	-
20	5303935116		Clock/timer, Eoc, White		Appelez-nous	-
21	316024902		Trim-canopy/shield, White		Appelez-nous	-
22	316059901		Support-receptacle		Appelez-nous	-
23	316060003		Bracket, Clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
24	316083100		Switch-rocker, White, Dual Element, (1)   (Replaces: 316076301)				$ 89.31
31	316095601		Knob-warmer, White				$ 23.78
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316025808		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	5304528972		Switch-6/8   (Replaces: 316049800)				$ 47.78
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
64	316062400		Retainer, Plate, 64		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
*11360	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*11361	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*11362	5303290188		Screw, 6 Ov Sdr, 8-18 X 1/2		Appelez-nous	-
14A	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
14B	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
14C	316082403		Bracket-ind. Light (not Illustrated)		Appelez-nous	-
