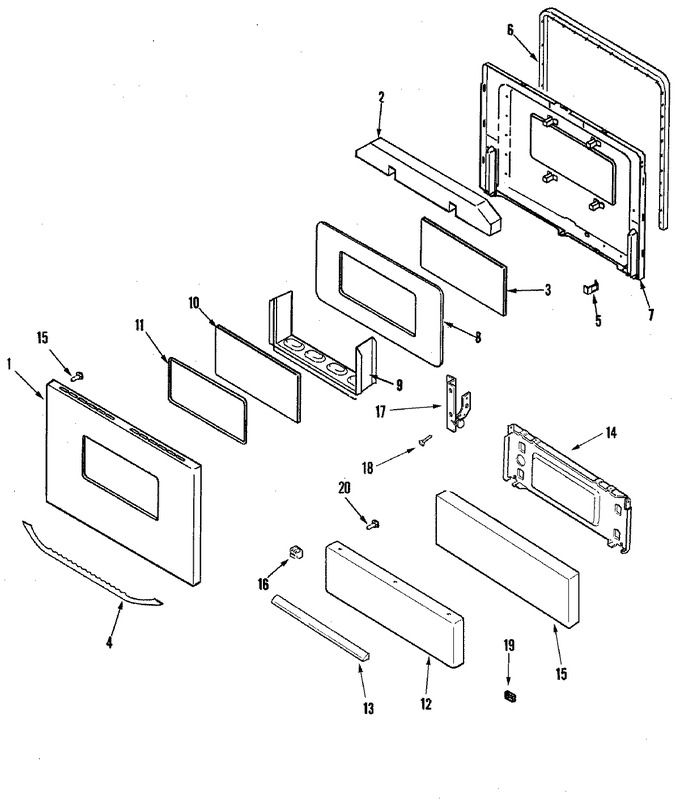

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	74006289		Panel, Door (bsq)	10	Appelez-nous	-
2	74002458		Insulation, Door	10	Appelez-nous	-
3	74002002		Glass, Inner	10			$ 62.17
4	74010336		Handle, Door (bsq)	10	Appelez-nous	-
5	7112P034-60		Clip, Door	10	Appelez-nous	-
6	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
7	74005097		Lining, Door	10	Appelez-nous	-
8	7101P209-60		Screw	10	Appelez-nous	-
8	74002461		Baffle, Door	10	Appelez-nous	-
9	74002462		Support, Outer Glass	10	Appelez-nous	-
10	74005098		Glass, Door (outer-bsq)	10	Appelez-nous	-
11	7201P017-60		Gasket, Window	10			$ 52.69
12	74005046		Panel, Drawer (bsq)	10	Appelez-nous	-
13	74010425		Handle, Door (bsq)	10	Appelez-nous	-
14	74007553		Lining, Drawer	10	Appelez-nous	-
15	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
16	74001663		Glide	10	Appelez-nous	-
17	74007560		Hinge, Drawer	10			$ 61.30
18	WPW10068250		Screw   (Replaces: 74009897)	10			$ 3.66
19	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
