| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

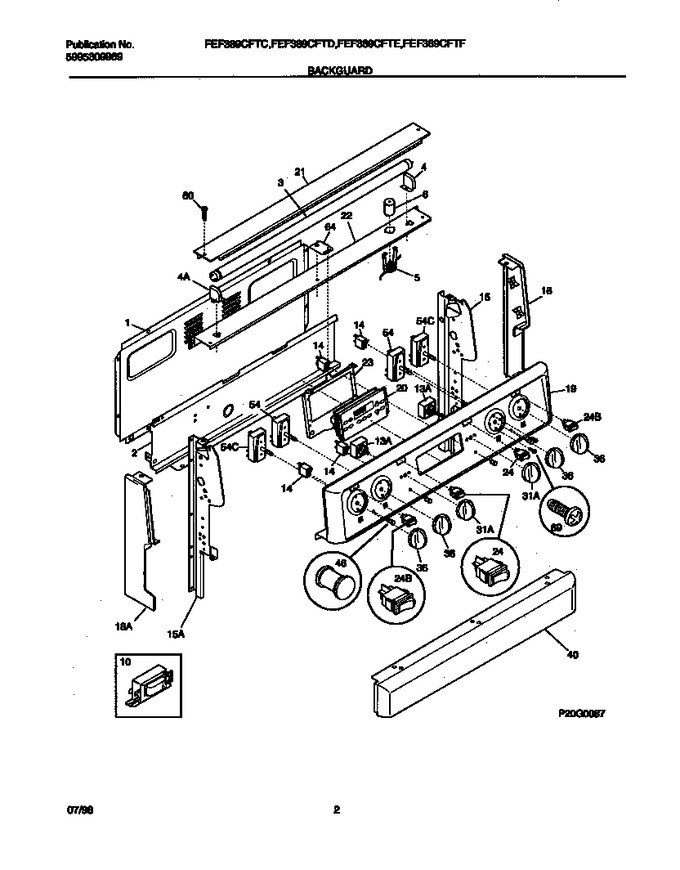

| 1 | 316081601 | Shield-backguard, Rear Wall |
|
- | |||||
| 2 | 316015905 | Shield-backguard, Inner |
|
- | |||||
| 3 | 3131275 | Lamp-fluorescent, Backguard |
|
$ 49.40 | |||||
| 4 | 3051223 | Receptacle-lamp, Lh |
|
- | |||||
| 4 | 3051222 | Receptacle-lamp, Rh |
|
- | |||||
| 5 | 316053200 | Receptacle, Starter |
|
- | |||||
| 6 | 3206218 | Starter-lamp |
|
$ 54.08 | |||||
| 10 | 316099800 | Ballast-lamp |
|
- | |||||
| 13 | 5304508926 | Switch-warmer, Infinite, Drawer/zone, (2) (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| 15 | 316049105 | Support-backguard, Lh |
|
- | |||||
| 15 | 316049104 | Support-backguard, Rh |
|
- | |||||
| 18 | 316026906 | End Cap, Almond, Rh |
|
- | |||||
| 18 | 316026907 | End Cap, Almond, Lh |
|
- | |||||
| 19 | 316024539 | Panel-control, Almond |
|
- | |||||
| 20 | 5303935117 | Clock/timer, Eoc, Almond |
|
- | |||||
| 21 | 316024903 | Trim-canopy/shield, Almond |
|
- | |||||
| 22 | 316059901 | Support-receptacle |
|
- | |||||
| 23 | 316060002 | Bracket-clock Mtg |
|
- | |||||
| 24 | 316086902 | Switch-rocker, Dual Element, Almond |
|
- | |||||
| 24 | 316005608 | Switch-rocker,oven Light ,almond |
|
- | |||||
| 31 | 316095602 | Knob-warmer, Almond, (2) |
|
- | |||||
| 36 | 316025107 | Knob-control, Infinite Sw, Almond, (4) |
|
- | |||||
| 40 | 316025809 | Panel-manifold |
|
- | |||||
| 46 | 316040201 | Lens-light/lamp, Indicator, Red |
|
- | |||||
| 54 | 5303935086 | Switch-6`` Element, (2) (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| 54 | 5304528972 | Switch-infinite, (4) (Replaces: 316049800) |
|
$ 47.78 | |||||
| 64 | 316062400 | Retainer, Plate, 64 |
|
- | |||||
| 69 | 5303292005 | Screw-switch Mtg, 8-32 X 5/32 |
|
- | |||||
| *22160 | 316002645 | Wiring Diagram |
|
- | |||||
| *22161 | 316003018 | Instructions,installation |
|
- | |||||
| *22162 | 316519700 | Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold (Replaces: 316021108) |
|
$ 10.02 | |||||
| *22163 | 316021117 | Screw-8-18x1/2 No. 5head Almond |
|
- | |||||
| 14A | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 14B | 316022503 | Light/lamp, Indicator, Yellow, 250 V |
|
Immediately | $ 70.16 | ||||
| 60A | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| 60B | 5303288574 | Screw, Truss Head, 8-10 X 0.375, Handle, (3) |
|
- |
