View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

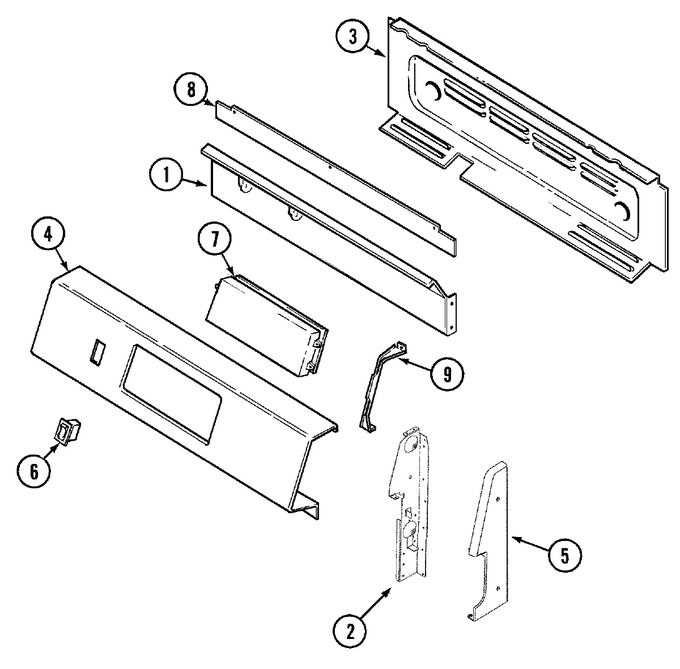

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74003488 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | 74003490 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 2 | 74003489 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 3 | 74004963 | Housing, Control Panel | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 74005260 | Panel, Control (wht) | 10 |
|
- | ||||
| 5 | 74003370 | End Cap, Control Pnl (lt-wht) | 10 |
|
$ 33.65 | ||||
| 5 | 74003369 | End Cap, Control Pnl (rt-wht) | 10 |
|
$ 31.74 | ||||
| 5 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 5 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 6 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 | ||||
| 7 | 74003880 | Clock (wht) | 10 |
|
- | ||||
| 8 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 9 | 74004913 | Bracket, Clock | 10 |
|
- | ||||
| NI | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| NI | 74004945 | Harness, Control Panel | 10 |
|
- | ||||
| NI | 74003869 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16008701 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| NI | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
