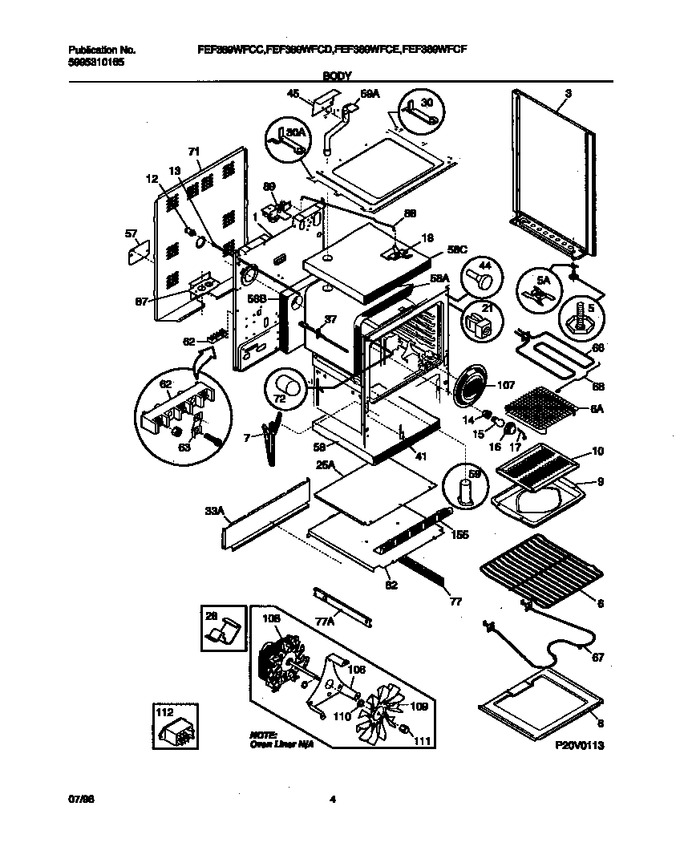

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080804		Back-main, Short,dipped ,black		Appelez-nous	-
3	316081026		Panel-bodyside, Black, Rh		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
5	5303288460		Nut,t-type,leveling Screw				$ 27.14
6	316085400		Rack-, Broiler Pan		Appelez-nous	-
6	5304531722		Rack,oven   (Replaces: 316083800)			Immediately	$ 51.05
7	316007005		Hinge-oven Door, (2)		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light		Appelez-nous	-
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	316092400		Shield-warmer, Upper		Appelez-nous	-
28	3011813		Clip,wire ,bodyside				$ 14.79
30	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
33	316095301		Shield-rear Wall, Lower		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 316111200)			Immediately	$ 38.32
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
45	316066100		Shield-wire, S/t Vent		Appelez-nous	-
57	316081101		Cover-access		Appelez-nous	-
58	316054201		Insulation, Oven Back		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316047708		Insulation, Oven Wrapper				$ 222.56
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316023600		Tube, Oven Vent, Upper		Appelez-nous	-
59	316073602		Tube-oven Vent				$ 53.35
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
62	5303935061		Terminal Block		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake,lower Oven   (Replaces: 316075102)			Immediately	$ 42.36
68	316075300		Support-element		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
77	316105501		Glide-warmer,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028103		Motor-latch/lock		Appelez-nous	-
105	316071901		Gasket-edge, Deflector B/g		Appelez-nous	-
106	316026600		Bracket,motor Mtg		Appelez-nous	-
107	316026701		Cover,fan				$ 408.89
109	316090600		Fan Blade				$ 54.97
110	316090700		Washer, Fan Motor		Appelez-nous	-
111	316090800		Nut-fan Retainer				$ 11.76
112	316082700		Relay, Oven Door Lock				$ 252.16
155	316095201		Shield-drawer, Front Warmer		Appelez-nous	-
*42884	3203550		Plug-button			Immediately	$ 15.22
*42885	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*42886	316026800		Rod-light Switch/door				$ 36.86
*42887	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*42888	5303051099		Nut, Hex, 10-32		Appelez-nous	-
*42889	5303285692		Cover-light/switch Rod		Appelez-nous	-
*42890	316001382		Harness-wiring, Main		Appelez-nous	-
*42891	316081027		Panel-bodyside,black ,lh		Appelez-nous	-
*42892	3934058		Anti-tip Kit				$ 98.75
*42893	316116000		Screw,anti-tip ,(4)   (Replaces: 316078600)				$ 12.89
*42894	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
*42895	5303288570		Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2		Appelez-nous	-
*42896	316072400		Bracket-vent Tube		Appelez-nous	-
108A	316021111		Screw,8-18 X 1.500		Appelez-nous	-
108B	316090500		Motor-fan				$ 285.23
