SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

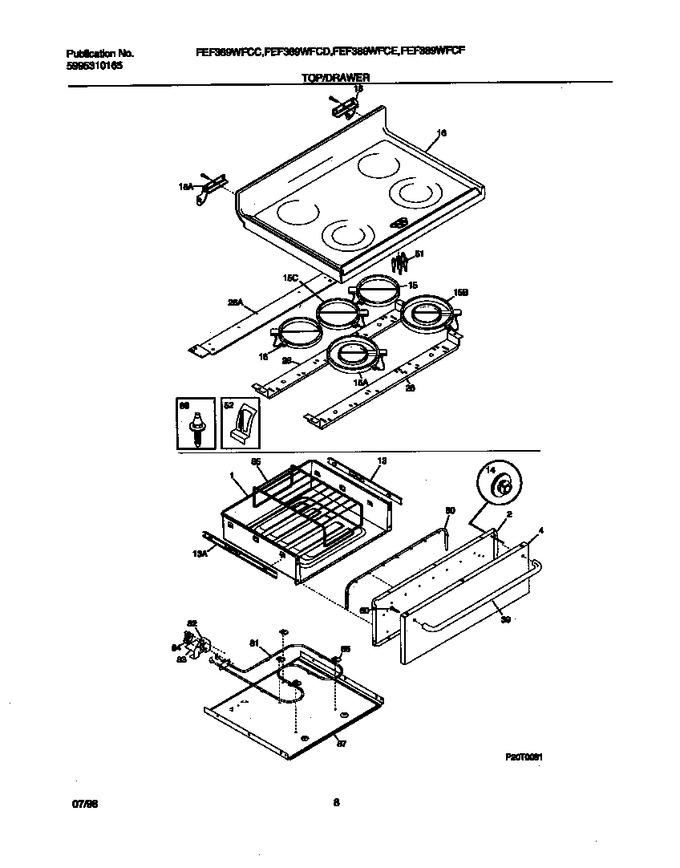

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
13	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
13	316096501		Channel Drawer,lh,inner		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
15	316098200		Element-warmer, 120v/100w		Appelez-nous	-
15	318198817		Element-surface,radiant ,small/6 Inch ,1200w,(2) ,limit   (Replaces: 316010203)			Immediately	$ 192.78
16	316098122		Main Top, Glass, Black		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
51	316105200		Light-indicator, Hot Surface, Assy, (1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base-warmer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
*42897	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*42898	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*42899	316001743		Harness-surface Elements		Appelez-nous	-
*42900	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*42901	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*42902	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*42903	5309951550		Cleaner-cooktop		Appelez-nous	-
15A	316049702		Element-surface, Radiant, 9``, Dual, 2100w/700w, Limit Sw		Appelez-nous	-
15B	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw Incl   (Replaces: 316049703)				$ 284.39
60A	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
60B	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
