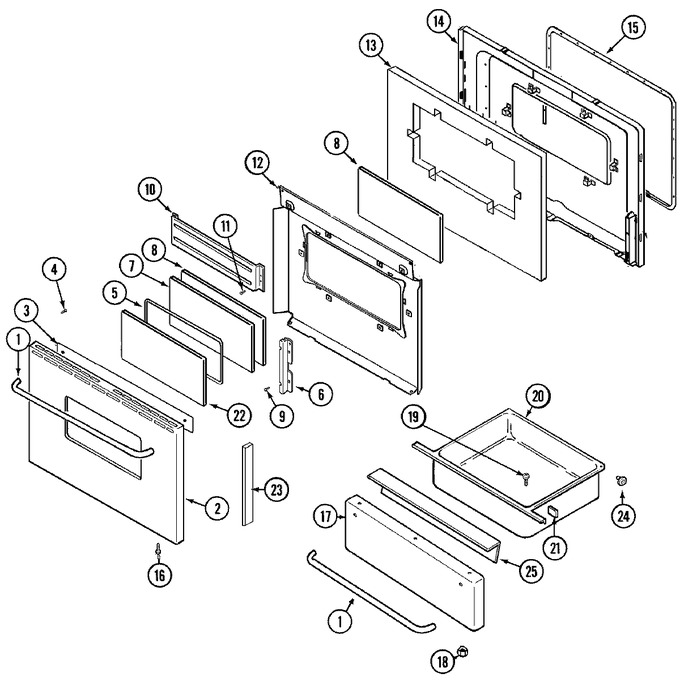

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001071		Handle, Door	10	Appelez-nous	-
2	74003047		Panel, Oven Door	10	Appelez-nous	-
3	74003146		Insulation, Foil Back	10	Appelez-nous	-
4	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
4	74001521		Washer (1``)	10			$ 5.27
5	7201P017-60		Gasket, Window	10			$ 52.69
6	74003048		Retainer, Glass	10	Appelez-nous	-
7	74002002		Glass, Inner	10			$ 62.17
8	74001841		Glass, Inner	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74003050		Baffle, Oven Door Secondary	10	Appelez-nous	-
11	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
12	74001843		Baffle, Door	10	Appelez-nous	-
13	74001842		Insulation, Door	10	Appelez-nous	-
14	74003244		Lining, Door	10	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74003312		Panel, Drawer (chr)	10	Appelez-nous	-
18	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
19	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
20	71003042		Drawer, Storage	10	Appelez-nous	-
21	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	10			$ 11.95
22	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
23	74001074		Nut,speed	10	Appelez-nous	-
23	74001073		Trim, Side	10	Appelez-nous	-
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
24	74003462		Roller (w/shaft)	10	Appelez-nous	-
25	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
