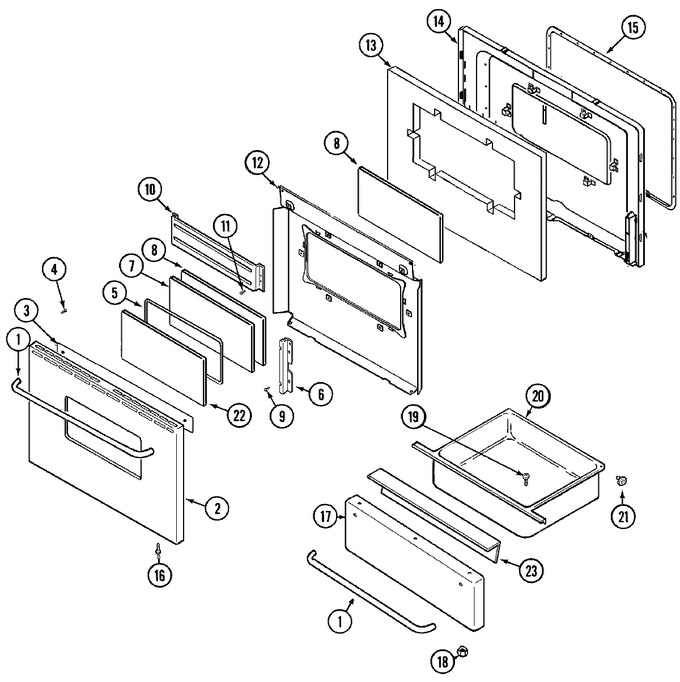

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001071		Handle, Door	10	Appelez-nous	-
2	74005271		Panel, Door (chr)	10	Appelez-nous	-
3	74003146		Insulation, Foil Back	10	Appelez-nous	-
4	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
4	74001521		Washer (1``)	10			$ 5.27
5	790058		Gasket, Window	10	Appelez-nous	-
6	74003048		Retainer, Glass	10	Appelez-nous	-
7	74002002		Glass, Inner	10			$ 62.17
8	74003320		Glass, Inner	10			$ 86.35
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74004901		Baffle, Oven Door	10	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
12	74001843		Baffle, Door	10	Appelez-nous	-
13	74001842		Insulation, Door	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74003312		Panel, Drawer (chr)	10	Appelez-nous	-
18	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
19	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77
20	71003042		Drawer, Storage	10	Appelez-nous	-
21	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
21	74004079		Shaft, Roller	10	Appelez-nous	-
21	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
22	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
23	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
