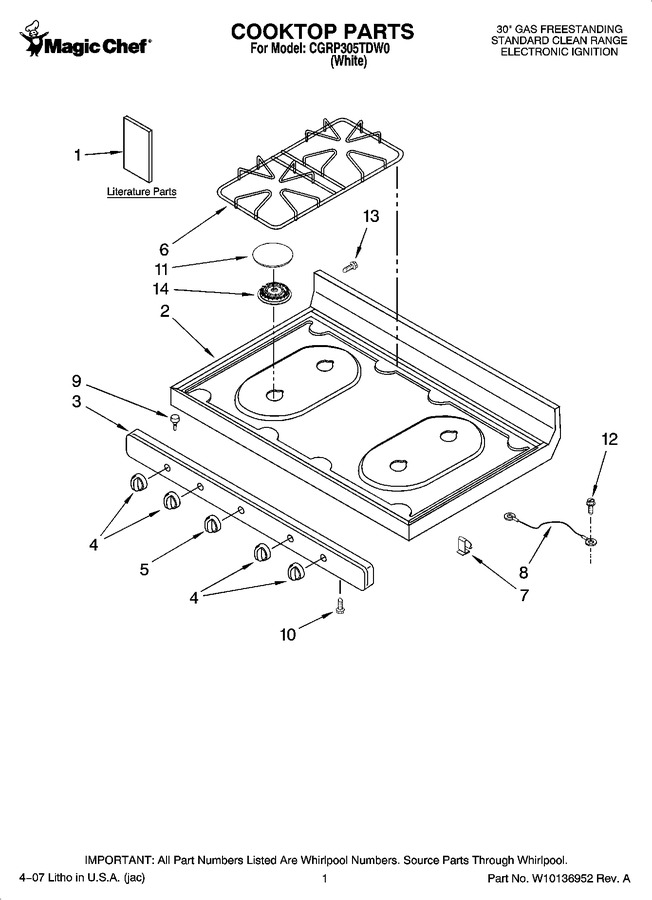

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10130752 | Instructions, Installation |
|
- | |||||
| 1 | 98015589 | Installation Instr (tmplate-anti-tip) |
|
- | |||||
| 1 | W10121768 | Guide, Use & Care |
|
- | |||||
| 1 | 98007130 | Safer Cooking Tips |
|
- | |||||
| 1 | 98007032 | Tech Sheet |
|
- | |||||
| 2 | WP98017619W | Cooktop (Replaces: 98017619W) |
|
$ 311.16 | |||||
| 3 | W10121766 | Panel, Manifold |
|
- | |||||
| 4 | 98006106 | Knob, Burner (4) |
|
- | |||||
| 5 | 98008445 | Knob, Thermostat |
|
- | |||||
| 6 | WPW10180089 | Grate, Burner (2) (Replaces: W10133344) |
|
$ 42.40 | |||||
| 7 | W11229684 | Clip, Cooktop (2) (Replaces: 98004722) |
|
$ 10.67 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 98014544) |
|
$ 74.50 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W11233072 | Screw (3) (Replaces: 98005000) |
|
Immediately | $ 12.62 | ||||
| 11 | WP98017461 | Cap, Burner (Replaces: 98017461) |
|
$ 60.75 | |||||
| 12 | W10850756 | Screw (2) (Replaces: 8534079) |
|
$ 6.98 | |||||
| 13 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 6.26 | |||||
| 14 | WP98017537 | Burner, Top (4) (Replaces: 98017537) |
|
$ 77.78 |
