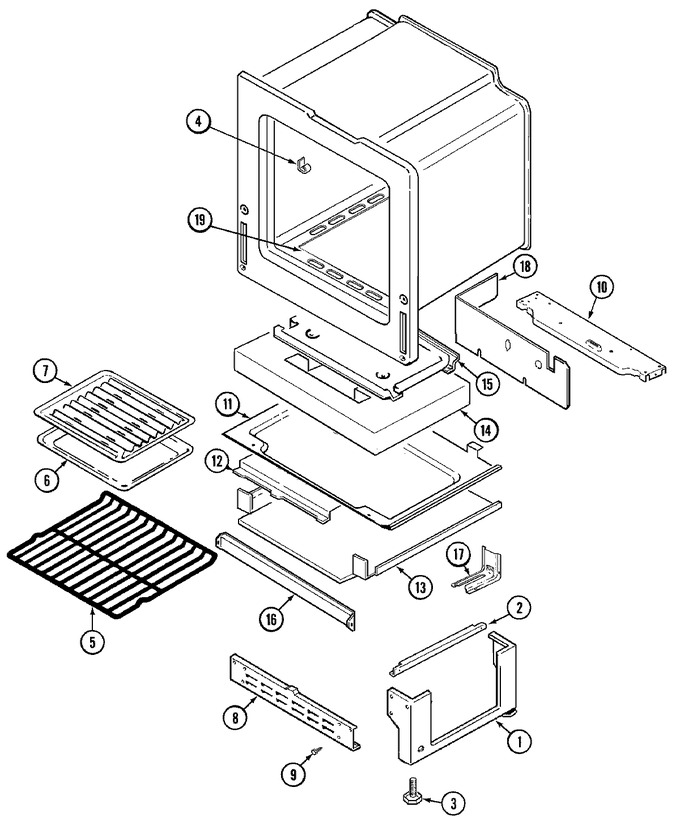

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003405		Pedestal, Side	10	Appelez-nous	-
2	74003565		Runner, Drawer	10	Appelez-nous	-
3	W11665456		Leg, Leveling   (Replaces: 74002557)	10		Immediately	$ 25.30
4	WP7112P004-60		Clip, Thermostat Bulb   (Replaces: 790055)	10		Immediately	$ 11.07
5	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
6	Y3401F02019		Pan, Broil	10	Appelez-nous	-
7	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74004167		Support	10	Appelez-nous	-
11	74004296		Retainer, Bottom Insulation	10	Appelez-nous	-
12	3604F204-51		Shield, Heat	10	Appelez-nous	-
13	3604F205-51		Shield, Drawer	10	Appelez-nous	-
14	74003503		Insulation, Oven	10	Appelez-nous	-
15	74001651		Pan, Bake Burner	10	Appelez-nous	-
16	74001219		Baffle, Oven Front	10	Appelez-nous	-
17	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	10		Immediately	$ 4.69
17	WP7101P485-60		Screw   (Replaces: 7101P344-60)	10			$ 26.33
18	74003329		Cover, Burner Valve	10	Appelez-nous	-
19	74002380		Cover, Hole	10	Appelez-nous	-
19	5504M004-19		Bottom, Oven Assy.	10	Appelez-nous	-
