Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004292		Panel, Manifold (blk)	10	Appelez-nous	-
2	74004186		Bracket, End Cap	10	Appelez-nous	-
2	74005671		Bracket, End Cap	15	Appelez-nous	-
2	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
3	74004819		Cap, End (blk-rt)	10	Appelez-nous	-
3	74004820		Cap, End (blk-lt)	10	Appelez-nous	-
3	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
7	74005016		Top, Main (bsq)	10	Appelez-nous	-
8	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
8	3601F221-45		Baffle, Vent Cover	10			$ 28.30
9	74005323		Cover, Vent (blk)	12	Appelez-nous	-
9	74004406		Cover, Vent (blk)	10	Appelez-nous	-
10	7201P061-60		Gasket	10			$ 4.83
11	74001059		Grate (blk)	10	Appelez-nous	-
12	74004364		End Cap, Vent (lt-blk)	10	Appelez-nous	-
12	74004365		End Cap, Vent (rt-blk)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74004785		Support, Manifold Panel	10	Appelez-nous	-
13	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
14	12001323		Wire/terminal Kit	10	Appelez-nous	-
14	5401A452-60		Drip Bowl Kit (accessory)	10	Appelez-nous	-
15	74006057		Insert, Oven Vent	14	Appelez-nous	-
NI	74004287		Knob, Valve (blk)	10	Appelez-nous	-
NI	74003427		Knob, Infinite Switch (blk)	10			$ 16.42
NI	74004286		Knob, Valve (blk)	10	Appelez-nous	-
NI	74004367		Manual, Use & Care	10	Appelez-nous	-
NI	16010161		Manual, Srvc Elec/gas Range	10	Appelez-nous	-

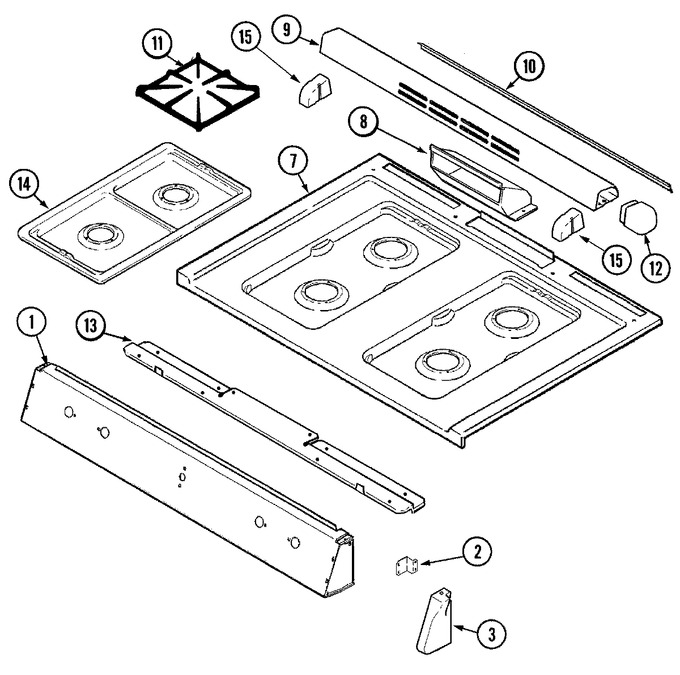

    View Diagram in Separate Window       Print Part List
