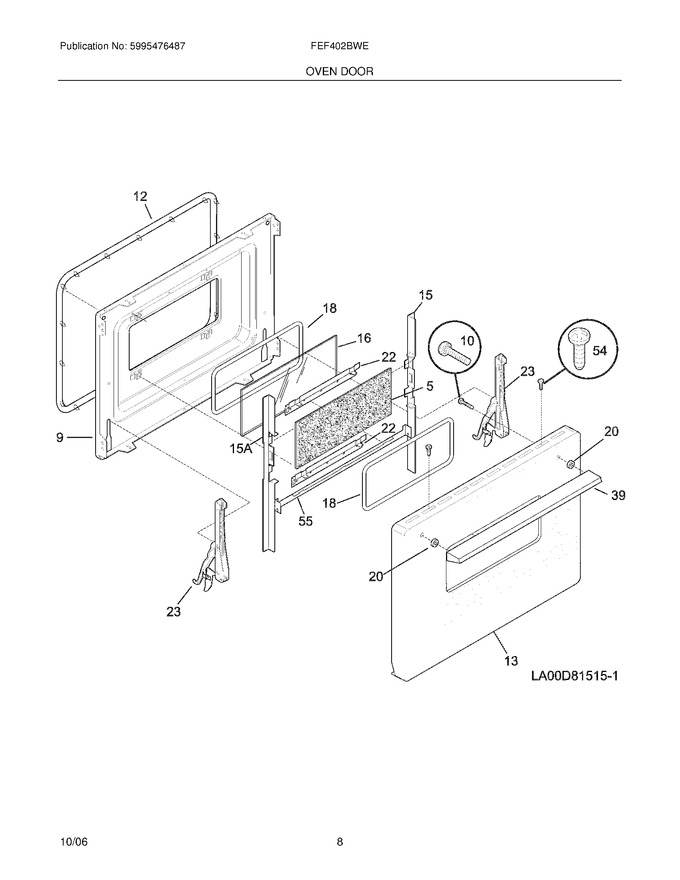

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
9	318048708		Liner,oven Door		Appelez-nous	-
10	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
12	318053301		Seal-oven Door			Immediately	$ 122.90
13	318009107		Panel,oven Door ,white		Appelez-nous	-
15	318024010		Bracket,oven Glass Mtg ,rs		Appelez-nous	-
16	318041620		Glass-oven Door,heat Barrier				$ 906.47
18	318053203		Gasket,door Glass Seal ,outer				$ 57.54
20	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303325091		Hinge-oven Door		Appelez-nous	-
39	318185902		Handle,oven Door ,black		Appelez-nous	-
54	5303317975		Screw,10 X 1/2		Appelez-nous	-
55	318122300		Bracket,glass Support				$ 11.39
15A	318024011		Bracket,oven Glass Mtg ,ls		Appelez-nous	-
NI	3201899		Washer,flat		Appelez-nous	-
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
